SRYLED rgb led module p6 rgb p6 indoor led display with CE certificate

Get Latest Price

Payment Type:: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , C

Min. Order:: 1 Square

Min. Order:: 1 Square

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)
Supply Ability:	3000 Square Meter/Square Meters per Month
Payment Type:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal , C

Product Description

Specifications rgb led module p6

1. resolution: 27777dots/sqm

2. brightness: 2500cd/sqm

3.2years warranty time

4. certificate: CE,RoHs,

SRYLED rgb led module p6 rgb p6 indoor led display with CE certificate Specification Parameter

Description	Technical parameter
Unit module	Module size	192*96mm
	Pixel pitch	6mm
	Pixel density	27777dots/m2
	Pixel configuration	1R1G1B
	Led specification	SMD3528
	Pixel resolution	W:32dots*H:16dots
Cabinet	Dimension	960mm960mm120mm
	Quantities of module	50pcs
	Power supply	4pcs
	Thermal discharge	Fan*2pcs
	Total weight	40kg
	Best viewing angle	6-150m
	Temperature	Storage: -35°C~+85°C
	Temperature	Working: -35°C~+85°C
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V±10%
	Average power consumption	600W
	Max. Power consumption	≤1000W/sqm
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/4 scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥400Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 8500cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥10,000hours
	Life span	≥100,000hours
	Flatness	Tolerance of interpixel ≤0.3mm
	Flatness	Tolerance of modules clearance≤0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software	LED media player

Module picture

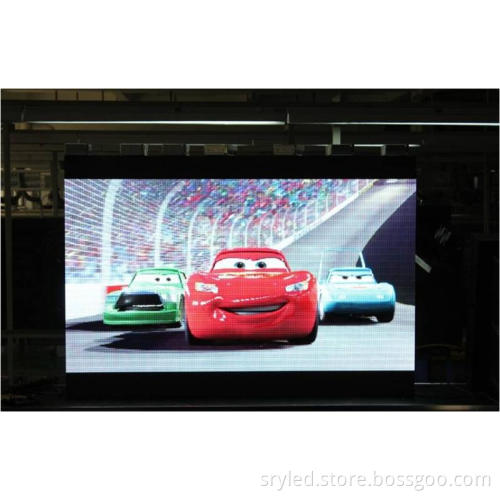

Product picture

Application Area

Trade Info 1).Trade terms: FOB,CIF,EXW 2).Payment terms: T/T ,Western Union, Paypal, Escrow, Moneygram 3) Payment condition: T/T ,30% deposit before production, 70% balance before delivery 4).Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days. Sample can be deliveried within 3days
5).Shipping: by sea,by air and by express delivery
6).Shipping port: Shenzhen, Mainland China Trade Shows

Our Services 1.Reply your inquiry in 24 working hours 2.Customized design is available ,OEM and ODM are welcomed 3.Delivery the goods to our customer all over the world with speed and precision 4.Offer customer the lowest price with high quality led module and led display 5 Warranty time: led module:2years led display:3years Our Market
