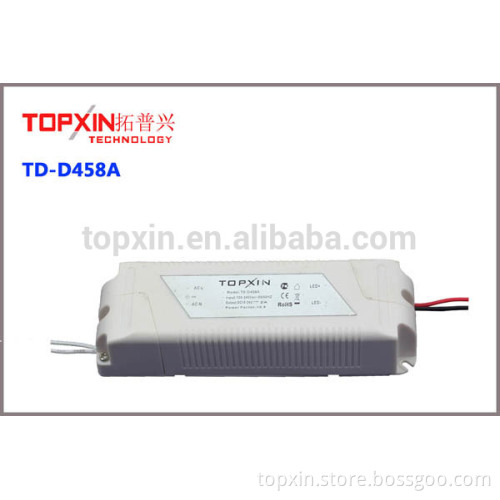

45w 45-65v 700ma led driver led power supply

Specifications 45w 45-65v 700ma led driver

 9-12W 320mA 40V LED DRIVER 9-12W Topxin built-out  led driver    Specification

Max Output Power	45W
Input Voltage	AC100-240V
Output Voltage	DC45-60V
Max output Current	700mA
Efficiency	86%
Power Factor	0.98(110AC)  0.95(220AC)
Dimension(mm)	155x49x33
MTBF(Ta=25°C)	30000Hrs
Warranty Time	24 months
Certification	ROHS, GS, CB, CE, FCC, PSE
Protection	OCP, OVP, SCP
Working Temperature	-36~+50°C
Voltage Tolerance	± 5%
Working Humidity	10% ~ 90%

            Advantage       1.Our aims are to provide every customer high quality, reasonable price and excellent service.   2.We can provide OEM and ODM products according to customer requirements   3.We can guarantee to send the goods on time. And also accept any transportation ways that you require.     Environment   1>Working Temperature: -36 ~ +50o C
2>Working Humidity: 10% ~ 90% RH non-condensing
3>Storage Temp., Humidity: -20 ~ +85o C, 10% ~ 95% RH
4>TEMP. Coefficient: ± 0.03%/o C (0 ~ 50o C)
5>Vibration: 10 ~ 500Hz, 2G 10min. /1cycle, period for 60min. Each along X, Y, Z axes
