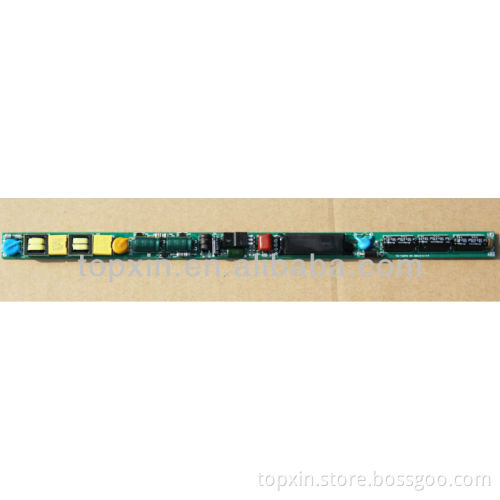

tube No RF interference 25W led driver
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
tube No RF interference 25W led driver Specification
Advantage 1.Our aims are to provide every customer high quality, reasonable price and excellent service. 2.We can provide OEM and ODM products according to customer requirements 3.We can guarantee to send the goods on time. And also accept any transportation ways that you require. Environment 1>Working Temperature: -36 ~ +50o C
2>Working Humidity: 10% ~ 90% RH non-condensing
3>Storage Temp., Humidity: -20 ~ +85o C, 10% ~ 95% RH
4>TEMP. Coefficient: ± 0.03%/o C (0 ~ 50o C)
5>Vibration: 10 ~ 500Hz, 2G 10min. /1cycle, period for 60min. Each along X, Y, Z axes Application
| Max Output Power | 30W |
| Input Voltage | AC100-240V |
| Output Voltage | DC30-40V |
| Max output Current | 700mA |
| Efficiency | 89% |
| Power Factor | 0.95 |
| Dimension(mm) | 287x17.5x10 |
| MTBF(Ta=25°C) | 30000Hrs |
| Warranty Time | 12 months |
| Certification | ROHS, GS, CB, CE, FCC, PSE |
| Protection | OCP, OVP, SCP |
| Working Temperature | -36~+50°C |
| Voltage Tolerance | ± 5% |
| Working Humidity | 10% ~ 90% |
Advantage 1.Our aims are to provide every customer high quality, reasonable price and excellent service. 2.We can provide OEM and ODM products according to customer requirements 3.We can guarantee to send the goods on time. And also accept any transportation ways that you require. Environment 1>Working Temperature: -36 ~ +50o C 2>Working Humidity: 10% ~ 90% RH non-condensing
3>Storage Temp., Humidity: -20 ~ +85o C, 10% ~ 95% RH
4>TEMP. Coefficient: ± 0.03%/o C (0 ~ 50o C)
5>Vibration: 10 ~ 500Hz, 2G 10min. /1cycle, period for 60min. Each along X, Y, Z axes Application
