23W Single Output Switching Power Supply built-in led driver with CE

Specifications Constant current design

Short circuit / Over voltage Protections

100% full load burn-in test

Low cost, high reliability

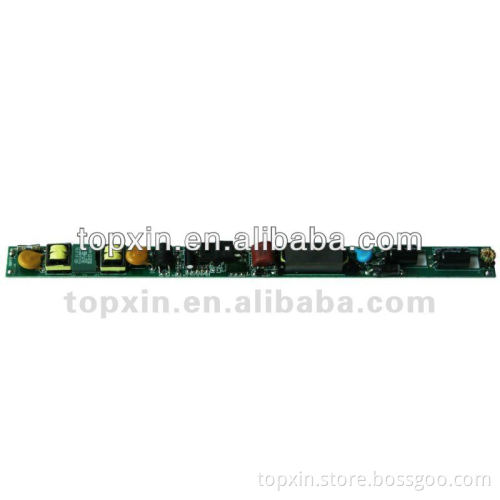

                23W Single Output Switching Power Supply   TD-T205     Specification

Max Output Power	23W
Input Voltage	AC100-240V
Output Voltage	DC30-40V
Max output Current	520mA
Efficiency	88%
Power Factor	0.95
Dimension(mm)	285*22.5*16 (mm)
MTBF(Ta=25°C)	≥438.Khrs, MIL-HDBK-217F(25°C)
Warranty Time	12 months
Certification	ROHS, GS, CB, CE, FCC, PSE
Protection	OCP, OVP, SCP
Working Temperature	-20~+65°C
Voltage Tolerance	± 4.0%
Working Humidity	10~98%RH,non-condensing

        Advantage   1.Our aims are to provide every customer high quality, reasonable price and excellent service.   2.We can provide OEM and ODM products according to customer requirements   3.We can guarantee to send the goods on time. And also accept any transportation ways that you require.     Environment   1>Working Temperature:  -20~+65°C 2>Working Humidity: 10~98%RH,non-condensing 3>Storage Temp., Humidity: -30~+65°C,10~95%RH 4>TEMP. Coefficient:  ±0.03%/°C(0~50°C)
5>Vibration: 10~500HZ,5G 12min/1cycle,period for 72min.each along X,Y,Z axes     Application     Topxin LED Driver for LED strip, LED  tube, LED panel light,  flood light, wallwasher, down light, and so on.
