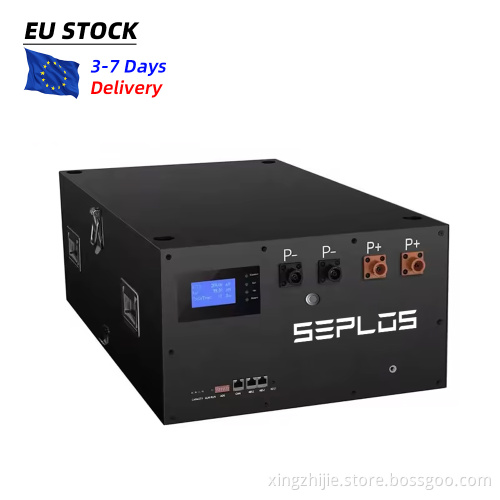

SEPLOS V3 LiFePO4 Lithium Phosphate Battery DIY Kits - 48V to 280AH to 310AH Assemble Box Without Cells

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

Product name	SEPLOS 48V 51.2V 206V 280AH 302AH 310AH LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case Assemble Box Without Cells
Basic Paramenters	MASON-280
Nominal Voltage(V)	51.2V
Nominal Capacity(Ah)	280Ah @0.5C discharge current 25±2℃
Nominal Power(wh)	14.3kwh
Dimension(mm)	750440251mm
Weight (kg)	DIY BOX=28.5KG,DIY BOX with cells=112±5kg
Discharg Cut-off Voltage(V)	41.6v
Charge Voltage(V)	57.6v
Continuously Charge/Discharge Current(A)	140A@25±2℃(Recommended)
Max Standard charge/discharge Current	200A@25±2℃
Standard charge/discharge Current	140A@25±2℃(Recommended)
Working Temperature	0-50℃(Charge)
		(-10——50℃)Discharge
		(-20——55℃)Storage
SOC Range	5%-100%
Recommended SOC Range	15%-95%
Communication Interface	CAN(Default) or RS485
Humidity	10%-85%
IP level	IP 20
Certificates	CE, ROHS, MSDS, UN38.3
Our BMS is compatible with Growatt, Goodwe, Sofar, SMA, Victron, DEYE, Luxpower, Sermatec, Renac, TBB Power, Solis, Foxess, and IMEON inverters. Support max. 16 connected in parallel
