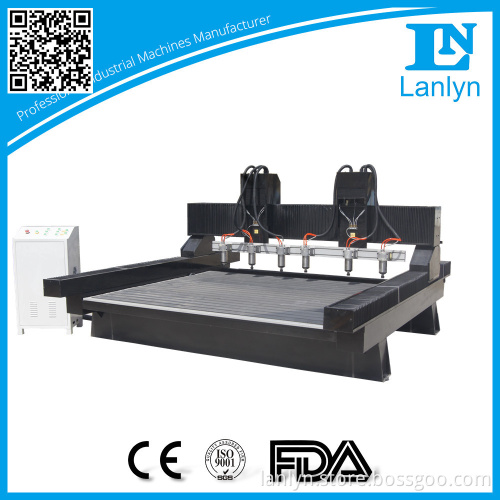

LN-1325 machine artificial quartz stone processing machinery in marble/ granite/ stone

LN-1325 machine artificial quartz stone processing machinery in marble/ granite/ stone
      Product Description                                                          stone processing machinery     Stone carving machine widely used in Natural marble, granite, artificial stone, tombstone, milestones, tile, glass and other materials and wire three-dimensional relief carving, cutting, edge down, drill-dimensional sculpture, and handicraft industry.   Stone carving display   Technical parameters

Model		LN-1325
Working Area	XYZ axis	1300*2500*300mm
Height	Z axis	300mm
Working Table		Vacuum (6 section) with T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN PMI/HIWIN guide
		Step motor or servo motor
Control System	CNC system	WEIHONG NK105
	Memory	512M
	LCD Panel	3”LCD
	Interface	USB
Accuracy	Moving	±0.01/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	20000mm/min
	Max.Engraving Speed	15000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	5.5kw ( stone machine dedicated water cooling )
	Rotary speed	0-24000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ or 380v/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	1500kg
	Dimension	2100*3500*1700mm
Working environment	Temperature	+5℃ to +35℃
	RH	30%-75%
	Air pressure	86-106Kpa

  Stone engraving router features   1. The overall steel structure, working area 1300 mm × 2500mmx300mm.   2. With 20 side rails to provide maximum rigidity, imported screws and racks, providing fast and smooth operation speed   3. Maximum moving speed is 20 m / min and Max operation speed is 15 m / min.   4. In according with industry standards, adopt X, Y, Z axis synchronous motor, to ensure high accuracy and high transmission ratio.   5. Intelligent 3D computer numerical control system, three-axis linear, fast, smooth three-dimensional carving, cutting and processing.   6. Replace table quality aluminum T-slot.   7. The system is compatible with CAD / CAM software (such as TYPE3) / ARTCAM / castmate / PROE / UG / Wentai, jdpaint like.   8.5500W DC brushless spindle drive provides a powerful driving force, cutting and carving.   9. Built-in high-capacity storage, and support off the power and restart.   Stone engraving samples Company Information       Our certificates Our Services Why choose us ?   1. Please tell me your detailed requirements in the inquiry for the machine, such as:   What's the materials you are going to cut or engrave? What's the maximum size for the materials? Includes the thickness. Do you have some special requirement?
2. After we know your exact needs, we will recommend you with the most suitable machine and competitive price. 3. After you confirm the specification of the machine and the price, the Proforma invoice will be sent to you. 4. We will produce the machine after deposit is wired. 5. All inquiry or question from you will be replied in 12 hours during working day. 6. We offer OEM services. Can print your own logo on product,can customize the retail box packing and other things. 7. We have very experienced R&D engineers and we have strong ability to do ODM projects.   Packaging & Shipping     FAQ Q1:  What is the MOQ?   A1: 1pcs.   Q2: What the delivery time?   A2: Delivery time: Within 7days for samples, within 15-30 days for bulk orders.
  Q3: What is the warranty?   A3: 1 years warranty, if the quality problems occured during this period, our engineers will offer you related amendent.
  Q4: What's the payment method?   A4: T/T, West union ,Money gram and etc.   Q5: What is the certificate?   A5: CE , FDA     How to contact us? Contact me: Susan          Email: susan at lanlyntech.com         Skype: Susan-Lanlyn    Wechate: susan_lotusleaf
             Tel: 0086-18818774597             QQ: 3130357670   Pls feel free to contact me for wood cnc router , any meet your interest, let's talk details!
