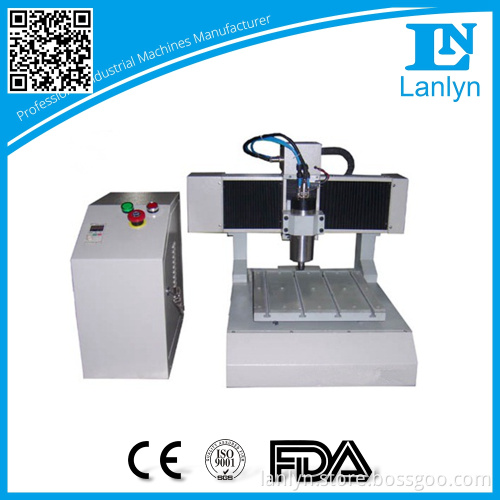

portable PCB signnature logo craft gift engraving mini 3d cnc 3020 router

  portable PCB signnature logo craft gift engraving mini 3d cnc 3020 router  Product Description    Applications:   Materials :wood, aluminum, organic glass, steel, MDF, glass, stone, marble, granite, Phenolic Foam Board,     foam, double color plate, ABS, acrylic ,plastic ,PCB,PVC, lotus plate,palette,fire proof plate, rubber sheet     and so on.       Applications: advertising,craft,mould,electronic,building,printing,packaging,wood industry,decoration     industry and so on.   Target user: advertising company,decoration company,hotel,shopping centre,school,hospital,office,entertainment venues,bath center,organization,business,and other.   Plane and round material processing 2 d and 3 d design.     Main features:   1. High efficiency: It merely needs a few minutes to make a piece of PCB. 2. Accuracy: The min error of numerical control drill hole less than 1mil (0.025mm). 3. Automatism and convenience: Simple software hardware installation, operate the     manufacturing  process by striking the function keys of operation system.   3030 CNC Router                                           Technical Parameters:

Model		LN-3030
Working Area	XYZ axis	300*200mm
Height	Z axis	100mm
Working Table		T slot platform table
Move System	XYZ axis	XY:Z: ball screw
	Motor	Step motor( servo motor optional)
Control System	CNC system	NC studio
	Interface	USB
Accuracy	Moving	±0.003-0.08mm
Speed	Max.Moving Speed	7-8m/min
	Max.Engraving Speed	4-6m/min
	Command	G-Code/HPGL-3D
Spindle	Power	0.8kw ( water cooling )
	Rotary speed	0-24000rpm
	Collet	ER20
Power Supply	AV	220V/50HZ
Package	Weight	90kg


Optional items:    Rotary axis, vacuum table,dust collector,or bigger spindle .   Samples:     Our Services Warranty and Service: One year warranty for machine We offer online service 24 hours all day Skype, Email and so on. You can contact with us at any time,if urgently,pls call us. English manual and Video CD for manchine using and maintance.       Packaging & Shipping     How to contact us
