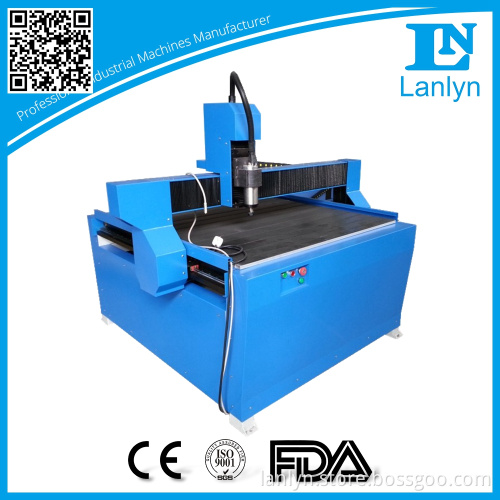

Woodworking CNC router machine for craving price/jinan nice cut cnc 1212 price

Woodworking CNC router machine for craving price/jinan nice cut cnc 1212 price   Product Description     Feature:
1.Integral steel structure with work area of 1200mm(W)x 1200mm (L)x200mm(H) .
2.25 mm linear ball bearing profile rails for maximum stiffness,imported screws and rack, offers fast and steady movement .
3.Max.moving speed is 10m /min,Max.working speed is 8m /min .
4.Made according to the industrial criteria, Y axis is driven by two stepping motors in-phase.Adopts the imported 40 Ball Screw system and keeps the high precision and surging drive .
5.Intelligent 3D Computerized Numerical Control system realizes three axis linear linkage,offers fast and smooth 3D engraving,cutting and marking.
6.High-quality Aluminum alloy T-slot worktable which is replaceable .
7.It is compatible with such CAD/CAM software like type3/artcam/castmate/proe/UG/Artcut etc
8.2200W DC brushless spindle with frequency inverter privide Powerful motivity for cutting and engraving.
9.Back up memory, restart the job in the same position after power shut off Rigid metal, hard and durable.
10.Having applications in the processing of sign making, woodworking, plastic fabrication, furniture making, model making,Art Crafts Processing,upholster,gift,etc.
11.dust collection systems(Option) .
12.Vacuum hold down worktable (Option).    Technical Parameters:

Model		LN-1212
Working Area	XYZ axis	1200*1200*200mm (standard)
Height	Z axis	200mm (optional, 300,400mm)
Working Table		T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN HIWIN linear guide rail
		Step motor or servo motor
Control System	CNC system	WEIHONG or DSP handle
	Interface	USB
Accuracy	Moving	±0.05
	Repeat	±0.05mm
	DPI	0.002mm
Speed	Max.Moving Speed	30000mm/min
	Max.Engraving Speed	20000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	2.2kw ( optional ) water cooling
	Rotary speed	0-24000rpm
	Collet	ER25-Φ3.175-Φ16
Power Supply	AV	220V/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	600kg
	Dimension	2100*2100*1700mm
Optional Parts	Dust collector with cover
	Vacuum table with pump
	Water tank
	Rotary device
Optional Parts	ATC
	Servo motor
	Spindle

    Machine pic:   1.Adding 3 axis the dust cover,make machine moving system clean,keep the accuracy and the      speed.machine can live longer. save your money.   2.The DSP handle can make you operate machine more easily,    can support offline working.saving your time and improve your working efficiency.       3.PMI linear guide rail and helical gear combine,which ensures the fast speed and high-quality.     4.The chain will protect the cable from damage effectively.
    5.The spindle we adopt the HSD or HQD with high quality.     6.the lubrication we have the auto and hand oil lubrication.you can choose you like.       Samples:   Packaging & Shipping     How to contact us
