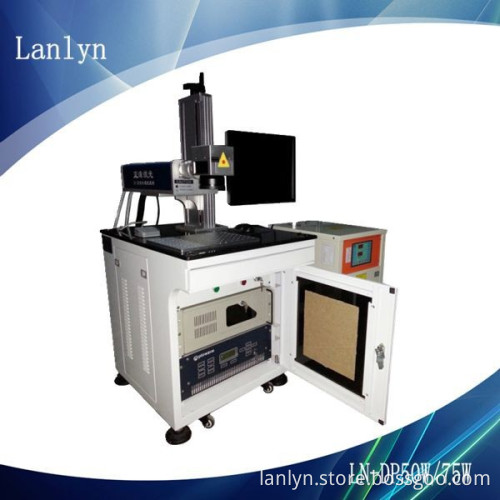

High power Metal Yag-50 Laser Marking Machine

Specifications yag-50 laser marking machine

1.High-precision

2.Q-switch

3.Semi-conductor module

4.Import focus lens

High power Metal Yag-50 Laser Marking Machine yag-50 laser marking machine 1. Laser modules long lifespan up to 13,000 hours.   2.Stable optical path,good mode of output beam with small laser facular, high marking precision.   3. Low power consumption, equivalent to one-third of normal krypton lamp.   4.High conversion efficiency, stable performance.   5.Totally closed optical path with dust-free, maintenance-free for long operaition.   Technical Data:

Model	YAG 50/75W
Laser type	YAG
Laser  power	50/75W
Laser wavelength	1064nm
Repetition rate	<50KHZ
Marking area	110*110mm - 300*300mm
Marking depth	<0.3/<0.5mm
Marking line-speed	<7000mm/s
Min. line width	0.04mm/0.05mm
Min.character size	0.2mm/0.3mm
Repeat accuracy	+/-0.05mm
Total power	<2.5KW
Power supply	AC220V±10% ,50Hz
Cooling system	air cooling/water cooling
Working temperature	0 -45°C
Working humidity	5-95%  free of condensate water
Dimension	1100*930*1180mm
Net weight	215KG

  Product Description Description for YAG laser marking machine: Semi-conductor pump series laser marking machine adapts the worldwide most advanced technology by exciting Nd: YAG crystal with a diode beam , to create numerous inversed parties, to output powerful 1064 nm laser pulse finally through Q switch. Auto marking can achieved by computer controlled scanner. employs imported semiconductor modulers, high-speed galvanometer, Q switches and ND:YAG, high scanning speed and precision, cold water circulation system controlled by the independent performance of the whole stable, long work time. It is applied to all kinds of metal material and some non-mental materials, engrave beautiful clear picture and mark with flexible shortcut and stable marking software.   In dustrial Applications: It can be marked all kinds of metal & nonmetal materials,appropriate to require more sophisticated precision processing, widely used in the industries of electronic components, mobile communications, watches and clocks, glasses, carand motorcycle parts, plastic buttons, metal, tableware, hardware and tools, instruments, sanitary ware, medical equipment, handicraft, PVC pipe, home appliances, signs, packaging and so on.    Ordinary metals and alloys (iron, copper, aluminum, magnesium, zinc and other metals), precious metals and alloys (gold, silver, titanium), metal oxides, special surface treatment ( phosphating , aluminum anodizing, plating surface), ABS material (shell of electrical appliances, necessities), ink (translucent keys, printing products), epoxy (electronic components, packaging, insulation layer) , ect    YAG marking samples:     Packaging & Shipping  Package:     Our Services Warranty: 1. One year warranty. 2. Our customer will be fully trained for the operation and maintaining technology after the order confirmed.  3. all off your inquiries or questions will be answered within 24 hours, please feel free to call us if you have any question.  4. Skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when problem happened.   Click here to send a inquiry. If you need YAG laser marking machine.  More information, please contact Cassie freely. +86 183 12501540 Skype:kang.raomei
