Laser mark machine for jewellery with low price and good quality

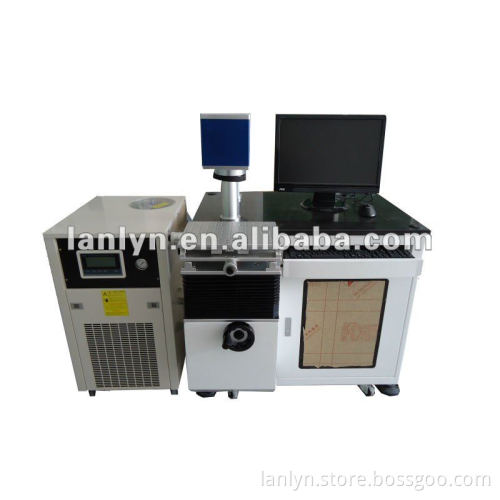

Specifications 1.high precision YAG laser marking machine

2.high conversion efficiency

3.stable performance

4.simple operation

Technical Parameters:

Model	LN-DP  (YAG)
Laser wavelength	1064nm
Laser type	DIODE SIDE-PUMP
Laser tube power	50/75W
Repetition rate	<50KHZ
Marking area	70*70--250*250mm
Marking depth	<1.0mm
Marking line-speed	<7000mm/s
Min.line width	0.015mm
Min.character size	0.3mm
Repeat accuracy	+/-0.005mm
Total power	<2KW
Cooling system	air cooling/water cooling
Working temperature	0 -45°C
Working humidity	5-95%  free of condensate water
Power supply	220V/single/50HZ/15A
Dimension	1100*930*1180mm/680*430*790mm
Net weight	225KG

    Applications:
Widely usded in electronic part and component, electrical engineering, electrical appliance, telecommunication product, car and motorcar spare part, instrument and meters, plastic casing, aviation and aerospace, military product, hardware fitting and accessory, facility, measuring implement, cutting tool, sanitary appliance, stationery,medicament, food and beverage, make-up, medicine packaging, medical instrument, clock and jewelry, light-through key board, glasses, solar PV, craft and etc.area.
Widely suitable for various metals, alloy, metallic oxide materials and some non-metallic materials(silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, printing ink, plating, spraying, coating film and etc.external materials).

      Components:
