Latest CNC Machines Small Low Cost PCB CNC Router/ PCB CNC Drilling Machine

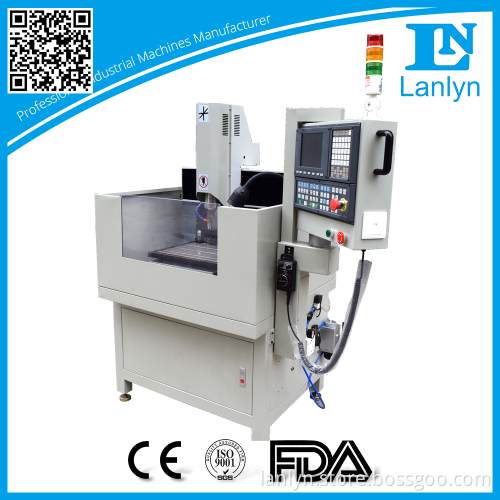

Latest CNC Machines Small Low Cost PCB CNC Router/ PCB CNC Drilling Machine low cost pcb cnc router   Product name: small cnc milling machine with ATC Working table:400*300mm Servo motor Syntec controller   Detail Pictures of ATC cnc milling machie:     Standard features: . With  air-cooled high power electric spindle,and drive system use Janpanese servo motor.   . For the international leading sueface with high-intensity,vacuum absorption table ,high electric plank material for adsorption,and strong adsorption of different materials.   . Intelligent protection of the surface ; to prevent misuse,or software errors which may cause damage to the surface. Intelligent processing with cross-border protection to prevent the design of the layout over the processing area causing collision because of mechanical phenomenon.   . The Syntec control system,auto-complete multilevel 3D processing ,carving or cutting.Meanwhile ,offiine operation can be realized.   . General principles of tempering aging treatment of welding structure ,solid without deformation. Ganty mobile ,fixed work platform,materials on the table canbe arbitrary processed     Technical Parameters:

Model		LN-4030
Working Area	XYZ axis	400*300*120mm
Height	Z axis	120mm
Working Table		T slot aluminum alloy platform (straight ATC)
Move System	XYZ axis	XY: ball screw
		Z: ball screw
		servo motor
Control System	CNC system	WEIHONG / SYNTEC
	Memory	512M
	LCD Panel	5”LCD
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	30000mm/min
	Max.Engraving Speed	20000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	2.2kw
	Rotary speed	0-24000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	300kg
	Dimension	700*600*1300mm
Working environment	Temperature	+5℃ to +35℃
	RH	30%-75%
	Air pressure	86-106Kpa

  Application:   Materials :wood, aluminum, organic glass, steel, MDF, glass, stone, marble, granite, Phenolic Foam Board, foam, double color plate, ABS, acrylic ,plastic ,PCB,PVC, lotus plate,palette,fire proof plate, rubber sheet and so on.   Applications: advertising,craft,mould,electronic,building,printing,packaging,wood industry,decoration industry and so on.   Target user: advertising company,decoration company,hotel,shopping centre,school,hospital,office,entertainment venues,bath center,organization,business,and other.   Plane and round material processing 2 d and 3 d design.   Engraving Samples:
