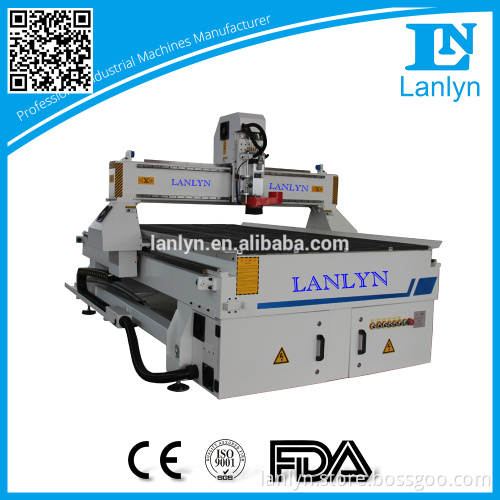

Hot New Products for 2015 4d Woodworking CNC Router with Vaccum

Hot New Products for 2015 4d Woodworking CNC Router with Vaccum 4d woodworking cnc router
  Main features: 1. Heavy body : heavy intergral welding structure,  8-10mm steel gantry ( solid and reliable, no distortion, carrying weight, stability). 2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack. 3. Two motors drive system for Y axis. 4. Professional vacuum system, strong adsorption capacity. 5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.   6. WEIHONG DSP system , hand controller.   7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.       Application:    .Woodworking Applications:   waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet,   Ma-jiang Table, computer table and panel type funiture.   . Advertising Applications:   making advertising products made from Brand Board, Acrylic cutting, mould and some other materials processing.   . Mould Area:   copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola, sandstone, plastic board, PVC pipe, wood sheet etc.   Other Applications:    Art and craft fields, embossment, photo engraving and so on.     Engraving Samples:       Technical Parameters:

Model		LN-1325
Working Area	XYZ axis	1300*2500*200mm
Height	Z axis	200mm
Working Table		Vacuum (6 section) with T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN PMI/HIWIN guide
		Step motor or servo motor
Control System	CNC system	WEIHONG NK105
	Memory	512M
	LCD Panel	3”LCD
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	30000mm/min
	Max.Engraving Speed	20000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	4.5kw air cooling
	Rotary speed	0-18000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	850kg
	Dimension	2100*3500*1700mm
Working environment	Temperature	+5℃ to +35℃
	RH	30%-75%
	Air pressure	86-106Kpa
