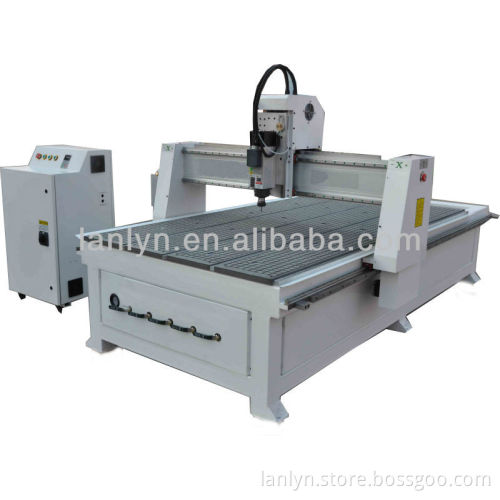

Lanlyn tech 1325 cnc router for wood,acrylic,PDF

Specifications 1), Applied to different processing industries.

2), Suitable for different engraving materials.

3), Can be paused timely

  Features: 1), Applied to different processing industries. 2), Suitable for different engraving materials. 3), Can be paused timely, increased and dis-creased speed, adjusted depth, and previewed engraving path plane and 3D drawing. 4), Advanced file pre-processing function: Help you correct errors of the file to be processed timely, compatible with multi processing code generated by different CAD/CAM soft wares, such as Wentai, Mastercam, Type3,UG, Artcam, Caxa. JD Paint, proe /UG and etc. 5), Break point/knife and power failure continue engraving function: with auto-correction function for homing point to assure the precision under long time use. 6), Operation: Simple, convenient, and easy to learn. 7), Imported Double nut screw, make sure engraving speed. 8), Adopting Taiwan High accuracy Linear Square Guide which increases engraving accuracy effectively. 9), Adopting High speed water cooling frequency motor which make sure vigorously distance, strong cutting, high frequency, long lifespan, prolonged working time. 10), Machine Body can burden a lot and would not be transformed. Suitable material: PMMA,PVC Sheet, ABS sheet, KT sheet, Timber ,Gemstone, Marble ,Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc. Specification:

Model No	TC-1325J
Table Size	1380mm×2900mm
Effective Working Area	1300mm×2500mm
Z Axis Travelling	180mm
Feeding Height	200mm
Frame/Structure	Steel
Table Material	Aluminum
Adsorption Method	Pressing plate or vac-sorb
X,Y transmission	Rack gear
Z transmission	(Taiwan PMI 25Screw)
Rail configuration	20 Round Rail
Positioning Accuracy	±0.15/300mm
Spindle rotating speed	0-24000(rpm/min)
Y Axis Motor	Stepper motor Double motor
X,Y,Z Axis Motor	Stepper motor
Movement Control System	Shanghai Weihong Control system
Processing instructions	G Code*,U00*,mmg*,nc
Resolution	0.00625/pulse
Tooling Diameter	3.175mm,4mm,6mm,8mm,10mm,12.7mm
Spindle Power motor	2.2kw water cooling(3.0KW for your choice
Power	380v50HZ±10(Internal switch Power)
Movement pattern	X Beam move
