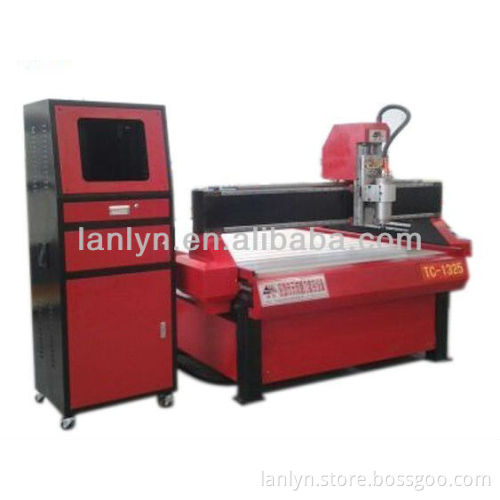

CC002 --1325 CNC wood router

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1), Applied to different processing industries.

2), Suitable for different engraving materials.

3), Can be paused timely,

Suitable material: PMMA,PVC Sheet, ABS sheet, KT sheet, Timber ,Gemstone, Marble ,Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc. Specification:

Model No	TC-1325H
Table Size	1500mm×2900mm
Effective Working Area	1300mm×2500mm
Z Axis Travelling	180mm
Feeding Height	200mm
Body Frame/Structure	Steel(Steel Structure 8mm)
Table Material	Thickness Aluminum
Transmission Configuration	Rack gear (Germany Slanting Rack)
Rail Configuration	25 Square(Taiwean Hiwin P5 Grate)
Z Axis Screw	Taiwan PMI 25 sCREWC4 Grade,double nut
Positioning Accuracy	±0.1/300mm
Spindle speed	0-24000(rmp/min
Processing Speed	0-30000mm/min
X Axis Motor Drive	Leisai 86 (Shenzhen)
Y Axis Motor Drive	Leisai 86(Dual Drive double motor)
Z Axis Motor Drive	Leisai110(Shenzhen)
Motion Control	Shanghai Weihong 3D Control System
Carving Instruction	G code,U00,mmg*,nc
Resolution	0.0025/Pulse
Collet	3.175mm,4mm,6mm,8,12.7
Spindle Power	3KW Water Cooling Motor
Conventor	Best,
Power	220V/380v50HZ±10(Internal Switch Power)
Weight	About 1200KG
Electric Box Configuration	Computer Capinet
Movement Pattern	X Beam Move
