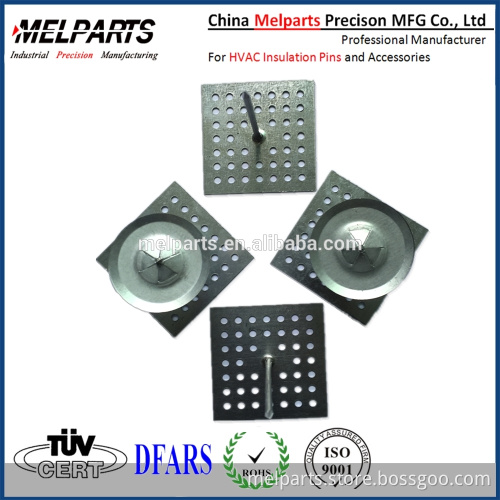

Insulation Anchor thermal insulation pin

Product Description
BASE SIZE: 25x25mm /35x35mm /40x40mm /45x45mm /50x50mm all are standard

PIN DIAMETER : 1.70mm for 25mmx25mm base

2.67mm & 3.00mm for both 35mm or 50mm base are standard.

Other sizes available by special order only.

PIN LENGTH : From 20mm to 150 mm are standard.

other lengths available by special order.

PIN MATERIAL: 1.70mm pin is Aluminum

2.67mm & 3.00mm pin are Low Carbon Steel.

Also available by special order in all stainless steel or all Aluminum

PIN PLATING :  Galvanized costing is standard. Yellow White and Blue Gal. are available

WASHERS : Self - locking washers are available in a variety of sizes, Shapes. and materials.

TO ORDER OR SPECIFY,  PLEASE GIVE : Item no. /Pin Dia. /Pin length /Material

Recommended assembly method

1. Operation at ambient temperatures between 15 and 25° C.

2. Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.

3. Remove the protective release paper taking care not to touch the adhesive.

4. Place the hanger in the required position and press the base against the surface to be insulated

5. Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours


BASE SIZE                 Recommended quantity of hangers each pin (kgs)

                                     Temp.23            Temp.28         Temp.40       Temp. 60

35mm×35mm              1.30                    1.20                 0.80               0.50

40mm×40mm              1.70                    1.60                 1.00               0.70

45mm×45mm              2.15                    2.00                  1.30              0.90

50mm×50mm             2.65                     2.50                  1.60              1.10

Specifications
1.Supply to USA,Europe,and Austrilia
2.Matrial:356T6/ADC12
3.Professional Perfomance Auto parts supplier
4.Ford Engines
