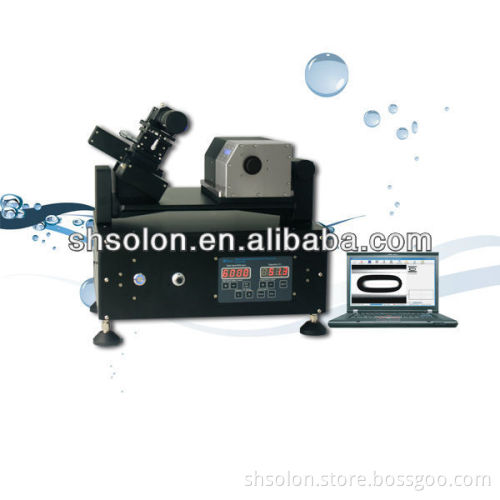

TX500C spinning drop interfacial tensiometer

Specifications Basic type of spinning drop interfacial tensiometer

independently operated or controlled by software

build-in heating system

Spinning drop interfacial tensiometer model TX500C is entry-level and basic type from USA KINO, which adopts such technologies as removable and both-ends-fixed sample tube sampling mode (RBSM), full-self-sealed quartz glass tube (FSGT) and build-in heating system. The instrument can be independently controlled via control panel or controlled by software, which are both simple and comfortable to operate. It is used to measure interface tension down to 10-6mN/m for analysis of dynamic interface tension, interface rheology and interfacial viscosity (oscillating drop method), surface elasticity, relaxation study, etc. It can be applied in fields of personal care product, tertiary oil recovery, micro emulsion, surfactant and more. Standard spinning drop interfacial tensiometer-TX500C is a basic and classical interface chemistry analytical instrument from USA KINO, consisting of removable rotation sample tube and build-in full-surface radiator heating system of aluminum alloy, etc. The instrument can be independently controlled via control panel or controlled by software, which enables both simple and comfortable to operate. Patent removable and both-ends-fixed sample tube sampling mode (RBSM)(1) Sampling mode with sample tube removable enables easier dosing and easier rinse of sample tube. (2) Brand new patent technology of quartz glass tube with both ends opening, no extra bubble formed and easier to dosing and rinse (3) Sample tube fixed of both ends in the spindle guarantees more stable and less rocking. Build in heating systemSimply equipped gas-thermal temperature control system and full-surface radiator heating mode can be used to heat sample without any other temperature control device, which is more suitable for oil field operators. DC motor with PID control system for more precise, smooth and stableControl port of RS232 and USB2.0 with better compatibility. Illumination-adjustable cold LED light sourceHigh brightness LED guarantees clearer and sharper drop edge, especially for analysis of muddy samples. Sample tube levelness control mechanism used of upgraded rotation stageBy control levelness of high speed rotation chamber and vision system, it easily control of traversing speed of droplet during ultra-low interface tension measurement. World-leading interface tension analytical system-CAST4.0 with comfortable and professional design(1) Automatic dynamic interface tension analysis. CAST4.0 will implement capture, image storage, calculation and display interface tension automatically at the touch of your finger, effectively avoiding errors caused by human. Furthermore, interface tension varying with time, rotating speed and temperature can also be measured, real-time displayed and exported to Excel. (2) Interface tension calculation method based on distance between two boundary lines rather than two points enables more precise result. (3) Humanized software design and database management -Standard magnification calibration mode enables software automatically search magnification once zoom of lens is determined. -Wizard design of standard windows for various measurement operators. (4) Database management: -Query and modifying historical data at any time. -One-to-one correspondence between data and image; Double clicking picture to modify measured value; more convenient to query and retrieve data. -Measured data is Excel exportable for you to create your measurement report conveniently. -Secondary modification of eigenvalue: The software will record all your operation traces for you to check the measured data to avoid errors caused by human.        Technical Specifications

Principles	Measuring mode: image capture of spinning drop shape, record of motor speed, measuring geometric dimension of droplet, calculation of interface tension.
1	Measuring Range	10-6-100mN/m
2	Measuring Method	2 methods: Vonnegut, Bashford-Adams method
3	Motor Type	High-speed DC motor with 500 lines encoder
4	Motor Speed	1000-9000RPM
5	Control Accuracy of Motor	0.1%
6	Heating System	No thermal / Gas thermal for option
7	Voltage of Heating Rod	Inner type heating rod(power supply: 110-220VAC/24VDC for option)
8	Temperature Probe	PT100
9	Display Range of Temp.	0-100°C
10	Control Range Temp.	Room temp. -85°C
11	Temp. Resolution	0.1°C
12	Communication Port	USB2.0/RS232
13	Zoom of Lens (Optical System)	Zoom 6.5:1
14	Magnification of Lens	0.7-4.5X
15	FOV	0-6mm
16	Resolution of Lens	0.001mm
17	Resolution of Camera	WVGA(752*480)
18	Camera Speed	87-340FPS
19	Transmission Speed of Camera	480M/S
20	Communication Port	USB2.0
21	Background Light	LED Light source, either strobe flash or always on, and switch by software control is available
22	Luminance Brightness Control	Adjustable LED background light
23	Levelness Control of Sample Tube	Integral rotation mechanical system
24	Lens Control	Focus adjustment, horizontal adjustment, spinning drop image tracking
25	Sample Tube ID	Self-sealed sample tube with both ends opening of 2,4,6mm ID
26	Fully Automatic Measurement	Just press "Measure", software will automatically capture, finding image edge, seeking sensitive spots and analyzing interface tension and displaying its time-dependent graph.
27	Database Management	One-to-one correspondence between image and measure value, data query, image and data EXCEL exportable.
28	Storage of Modification Traces	Data can be modified and its operation traces can be saved.
29	Data Export	Images and data can be exportable to BMP and Excel
30	Live Image Window	All drop images here can enable real-time observation
31	Software Control	Setting and reading of rotation speed, temperature and focus adjustment, droplet position tracking
32	Real-time Graph	Real-time display graph of time-dependent interface tension
33	Calibration	Professional optical system and calibration standard set
34	Levelness Adjustment	Levelness adjustment of whole meter and lens, as well as integral rotation
35	Power Supply	110-220V AC

      Standard Components and Accessories  1. one mainframe (computer is not included in the standard configuration)  2. one set of vision system  3. two RS-232 serial cable,1 USB cable  4. one power supply cable  5. five needles of 10cm length  6. two sample tubes with inner diameter of 4,6mm and both ends opening  7. two self-sealed sample tubes with inner diameter of 2mm and both ends opening  8. five set of sample plugs for seal of centrifuge tube  9. two caps of spindle  10. one sample tube with standard wire for calibration
