A80 surface tensiometer and contact angle meter

Specifications Excellent Weight-based Interface Chemistry Analysis System

10ug weighing with UPS 92Data/s

3 measuring mehod

Full automatic

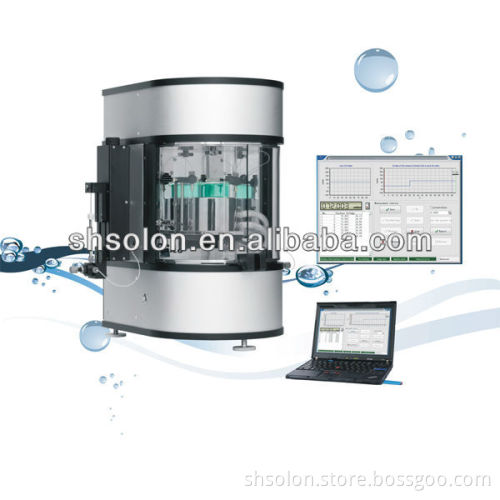

A80 series, focusing on meeting demands of high-quality and high-precision in research and measurement of interface chemical analysis. It’s designed for measurement of surface tension (ST) / interface tension (IFT) , analysis of equilibrium and dynamic contact angle (CA / DCA) of solid material, contact angle of powder and fiber, as well as measurement of critical micelle concentration (CMC) of surfactant, Langmuir-Blodgett film and more, which are all characterizations of interface chemistry. It’s advanced among all of the equipment in the world with the highest update speed (92data/s) micro-analytical balance (0.01mg), precision vertical travel positioning stage controlled by stepping motor and digital temperature semiconductor sensor. The instrument advantages in such merits as simple operation, high precision and accuracy, higher data update speed, more sensitive reaction, more accurate positioning with resolution of 0.007μm and excellent quality. A80 is equipped with CAST®1.0 which represents world leading weight based interface chemistry analytical system. SM01, its main software module, adopts 4 kinds of different surface / interface tension measurement methods (3rd generation Young-Laplace equation correction based Wilhelmy plate method, DuNoüy ring method and classical Wilhelmy plate method) as well as powerful data management. It can be used for measurement of middle to high viscosity materials (-10000CP), equilibrium and dynamic surface / interface tension, surface tension of surfactant and its CMC. In addition, with software module SM02 - contact angle analytical system, it can also be used for measurement of Wilhelmy plate method based dynamic / static contact angle, contact angle of single fiber or fiber bundle, as well as modified, extended and wicking Washburn method based contact angle of powder, surface free energy of solid and its contributions (dispersive force, polar force, hydrogen bond value), density, sedimentation and penetration speed, tensile force of single fiber, size-distribution analytical by sedimentation, Langmuir-Blodgett film, analytical balance, thermal analytical balance, water absorption and more. Our international design, global sourcing and professional service provide you comprehensive, efficiency and professional solution in interface chemistry measurement, which represent the leading level of weight-based interface chemistry equipment.  Advanced highest speed micro-weighing sensor with more sensitive reaction, more detailed information and more accurate measurement values

- -High-speed micro-analytical balance with theweighing readability 0.01mg -More powerful functions of temperature drift correction, zero tracking, built-in weight self-calibration, etc. -92Data/s of data update speed, more detailed, more reliable, especial for measurement of high-demanding single fiber, powder, interface rheology used Langmuir-Blodgett film method and dynamic surface tension -more opening and compatible communication protocol of weigh and most powerful data handling capacity double-microchip processing technology -upgradeable control software, customized to meet your special test requirements.

Advanced sample stage control system to fully enhance accuracy of traversing and positioning of sensing interfaces (e.g. platinum plate, DuNoüy ring)

- USA KINO is the only enterprise that has comprehensively studied and produced precision vertical travel positioning stage and applied it into interface chemistry analytical system. - We uniquely adopt coupler to connect motors and mechanical moving parts directly, which avoids problems of backlash and poor control accuracy caused by belt pulley connection structure. - The adoption of auto control of stepping motor and motion control card fully enhanced accuracy and compatibility of positioning control. For special measurement requirements.

    Anti-static design to improve measurement accuracy of surface/interface tensions (for option)

- USA KINO adopts ionic wind technology to avoid detection error of liquid-gas interface caused by electrostatic. When there’s electrostatic existing, liquid interface will rise, sensing interface (plate or ring) will contact with it ahead of time, hence measurement value of surface tension will be larger than normal, for example, measured value is 71.214mN/m with electrostatic and 70.891mN/m when using antistatic kit. - What is more, ion beam kit module is provided for better anti-static experience. The anti-static device will be always on during measurement. It’s most effective in powder / fiber measurement to avoid powder electrostatic adsorption and deformation of single fiber. - Usage of glass door with anti-static coating can effectively isolate conduction of electrostatic.

  More software modules are available for more measurements of interface chemical analysis and weighing- SM01 Surface / interface tension measurement module SM01 is designed for measurement of static / dynamic surface tension of liquid-gas/liquid-liquid interface with three methods (modified Wilhelmy plate method, DuNoüy ring method, classical Wilhelmy plate method). Lenard Frame ring method, Lamella breakpoint analytical module and interface elasticity analytical module are optional available. - SM02 Weight-based contact angle measurement module SM02 provides dynamic contact angle measurement by Wilhelmy plate method, contact angle measurement of single fiber by Wilhelmy plate method, modified Washburn method, extended Washburn method, thin-layer wicking Washburn method. It can be used for measurement of contact angle for plate, thin-layer, single fiber, fiber bundle, powder, as well as estimation of surface free energy of solid and its contributions like dispersive force, polar force, hydrogen bond value, estimation of adhesive work of solid and wettability analysis (wetting envelope) of solid. - SM03 Full-automatic CMC measurement module SM03 is designed for auto-controlling syringe pump for dosing, which can determinate critical micelle concentration with forward/reversed/extended mode, calculation of surface excess and Gibbs free adsorption energy. - SM04 Density measurement module SM04 is designed for measurement of density of liquid / solid. - SM05 Measurement module of sedimentation & penetration, tensile force of single fiber SM05 is designed for measurement of sedimentation & penetration, analysis of penetrating power of thin plate / paper and measurement of tensile force of single fiber - SM06 Module of size-distribution analysis via sedimentation velocity SM06 is designed for size-distribution analysis for nano-particles. - SM07 Weighing module of analytical balance SM07 is equipped with all functions of analytical balance. - SM08 Langmuir-Blodgett film and interface rheology analytical module SM08 is designed for interface rheology analysis with method of Langmuir-Blodgett film, surface oscillating and expanding method   User-friendly surface/interface analytical module-SM01

- A variety of measurement methods available for you to make a comprehensive solution. USA KINO exclusively provides Wilhelmy plate based Young-Laplace equation correction method, modified Wilhelmy plate method, classical Wilhelmy plate method, and DuNoüy ring method.

- World Leading 3rd generation Wilhelmy plate method based Young-Laplace equation correction method can be used to dynamically correct the influence of contact angle and buoyancy. Meniscus curve on alcohol-air-plate interface /Meniscus curve on water-air-plate interface /Meniscus curve on benzene-water-plate interface /Meniscus curve on n-butyl alcohol-water-plate interface - USA KINO’s innovative 3rd generation Wilhelmy plate method used Young-Laplace equation correction, in which method plate needn’t be immersed and withdrawn in measuring process (such method is called zero buoyance method). It can be used for measuring dynamic & static surface & interface tension, viscosity sample (e.g. glycerin, ink, coatings, paints ) and even high-viscosity sample of 10000CP (e.g. glues, resins ), which enriches measurement Compared to zero buoyance method used by other companies, technologies from USA KINO can measure values of viscous samples and cationic surfactant; it can be applied more wide range and has higher precision. (1)Professional liquid-gas / liquid-liquid interface detection technology; (2)Professional FK buoyancy correction technology; (3)Professional zero point correction and preset value technology. - Managing all dynamic live data (1)Software manages all live data that balance acquired. All data can be query and modified as well as exported to Excel. (2)Real-time display of data graph, with observation of interface tension changes. The function provides unparalleled convenience in measuring dynamic surface tension of time-dependent, medium-high viscosity sample, and volatile liquid or mixture. - Database with abundant liquid data 300 kinds of liquid with 800 data values can be directly used for analyzing surface free energy and its distributions of solid (such as Lewis acid and base components, hydrogen bond forces, polar force and dispersive force) (SM02 should be purchased) - Powerful database management (1)Real-time data storage and display, historical data searching, and eigenvalue modification are all available with CAST®1.0. (2)CAST®1.0 saves all measured data of dynamic value automatically and exports them into Excel. - User-friendly language interface of CAST®1.0 The language interface of CAST®1.0 adopts leading-edge unicode technology, providing you with a user-friendly operation interface. With it, different languages can be switched easily. - Standardized measurement templates for different samples Various standardized measurement templates are available from USA KINO: (1)Measurement of surface tension and equilibrium surface tension as well as estimation of equilibrium time for surfactant. (2)Measurement of surface tension and equilibrium surface tension as well as estimation of equilibrium time for medium-high viscosity sample. (3)High-precision surface & interface tension measurement of pure liquid with fixed surface tension (4)Interface tension measurement, especially for plate-upward state in interface tension measurement. (5)Measurement of interface tension between monomolecular film and water, etc.   Human-oriented operation process- Universal USB2.0 communication port provides stronger compatibility, higher speed, and convenient access to laptops and new-model desktops without RS232 port. - One-key zeroing and full-auto measurement with simple and convenient operation, minimizing errors caused by human operation. - Humanizing pre-wetting function, designed for oily sample test. Some samples can’t well wetting Wilhelmy plate or DuNoüy ring for the first time, especially for some oily sample. Our uniquely designed pre-wetting function can provide a more humanized solution for you in these cases. - Multiple self-calibration functions to enhance measurement reliability Series A80 are equipped with both build-in weighing calibration and self-calibration functions of sensing interface (Wilhelmy plate and DuNoüy ring), which is much better than other manufacturers’. It can enable you to control the reliability of measured value more effectively.  Flexible accessories- A variety of sensing interfaces Sensing interfaces confirm with international norms and standards, e.g. DuNoüy ring, Wilhelmy plate, Lenard frame ring and platinum cylinder, etc. - Anti-static device of ion beam (optional) It is uniquely designed for conditions of powder and single fiber, which can eliminate the effect of electrostatic with switch on. - Langmuir-Blodgett film trough (optional) SM08 -LB film and interface rheology analytical module is optional available. Oscillation mode (interface rheological analysis) , expansion mode (analysis of dynamic surface / interface chemical phenomena). - All kinds of sample chambers (1)Sample chamber with magnetic stirrer (electromagnetics for option) for measurement of CMC ( connecting to water circulator) (2)Sample chamber in different temperature conditions(SV01:-5-100°C, Sv02:-40-150°C(with ceramic thermal-protective covering layer), SV03:max. Temp. 250°C) (3)Digital temperature sensor made of semiconductor with temperature resolution of 0.01°C and absolute temperature accuracy of down to 0.0625°C (4)Specific sample vessel for measurement of dynamic surface/interface tension values -Density measurement kit Kit for solid / liquid density measurement. -Holders and sample vessels USA KINO provides various containers and holders for plate, single fiber and powder.   Technical Specifications  1, Hardware Specifications

1	Weighing Sensor	(1) Measuring Range	0-999.999mN/m
		(2) Resolution	0.0001mN/m
		(3) Weighing Accuracy	0.004mN/m
		(4) Weighing Capacity	220g
		(5) Weighing Readability	0.01mg
		(6) Data Update Speed	92 data/s
		(7) Data Processing	Double-chip processor
		(8) Zeroing Method	One-key zeroing with presetting functions
2	Sample Stage Control	(1) Lifting Range	0-50mm
		(2) Lifting Accuracy	Travel resolution:0.007μm; Repetitive positioning: 0.5μm
		(3) Control of Lifting Speed	Variable speed
		(4) Control Mode	Software-controlled via USB port for better compatibility
		(5)Positioning Readout Mode	Read by software encoder
3	Communication Port	USB2.0 port can be directly connected to laptops, without compatibility of Rs232
4	Temperature Readout (Relevant accessories should be optional purchased)	(1) Temp. Sensor	Digital semiconductor temperature sensor made in U.S.A.
		(2) Temp. Calibration	Self-calibration
		(3) Accuracy	0.01°C
		(4) Readout Mode	Automatically read by software

2, Reference Specifications of CAST®1.0

1	Measuring Method	3 methods, includes: - Modified Wilhelmy plate method - Classical Wilhelmy plate method - DuNoüy ring method
2	Measuring Mode	Both automatic and manual mode in measurement of surface / interface tension
3	Standardized Measurement Templates (Optional purchased or customized)	Various standardized measurement templates are available from USA KINO: -Measurement of surface tension and equilibrium surface tension as well as estimation of equilibrium time for surfactant. -Measurement of surface tension and equilibrium surface tension as well as estimation of equilibrium time for medium-high viscosity sample. -High-precision surface & interface tension measurement of pure liquid with fixed surface tension -Interface tension measurement, especially for plate-upward state in interface tension measurement. -Measurement of interface tension between monomolecular film and water, etc.
4	Calibration	Self-calibration of platinum plate & platinum ring and weighing sensor calibration
5	Pre-wetting Function	Providing human-oriented pre-wetting function
6	Interface Detection	Detection of interface of liquid-gas/liquid-liquid automatically by software
7	Density Correction	Density correction with preset function for measurement of interface tension
8	Buoyancy Correction	3 kinds of buoyancy correction modes, professional FK correction factor
9	Database Management	Real-time graph and storage, query of measured data and data Excel exportable
10	Softwares for Option	SM01 Surface/interface tension measurement module SM02 Weight-based contact angle measurement module SM03 Full-automatic CMC measurement module SM04 Density measurement module SM05 Measurement module of sedimentation & penetration, tensile force of single fiber SM06 Module of size-distribution analysis via sedimentation velocity SM07 Weighing module of analytical balance SM08 Langmuir-Blodgett film and interface rheology analytical module

3, General Specifications

1	Dimension	390L * 500W * 470H mm
2	Weight	32Kg
3	Power Supply	AC 100-240 50/60Hz
4	Power	40W
