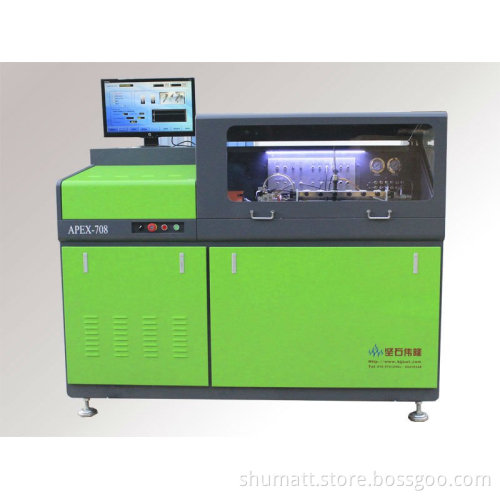

HK708A COMMAN RAIL TESTER FOR INJECTORS BOS CH SIE MENS DE LPHI DE NSO Cat erpillar HK708 adopts full-automatic control, and can test hundreds of kinds of injector and high-pressure pump including BO SCH, SIEM ENS, DEL PHI, DEN SO, Cat erpillar etc. with complete experimental data
Product Introduction   HK708 adopts full-automatic control, and can perform maintenance test of Euro Ⅲ, Euroiv, Eurovinjector and high-pressure pump conveniently. It can test hundreds of kinds of injector and high-pressure pump including BO SCH, SIEM ENS, DE LPHI, DE NSO, Cate rpillar etc. with complete experimental data. This test bench, integrated with original imported high-precision flow sensor, has functions: automatic measurement of oil quantity and automatic generation of fuel pump nozzle maintenance report etc..  l Configuration   708

Main motor	Hengshui "Energetic OX", Shanghai "People" (11kw/15kw)
Converter	"QM A", "L G", "SI EMENS", "L K"
Standard common rail fuel pump	Bo sch Original CP3 or CP1H
Standard fuel rail	Bo sch Original with DRV fuel rail
Low pressure hose	Korean APH heat-resisting and high tensile oil tube
Injector sensor	High-precision gear flow sensor
Pump sensor	High-precision gear flow sensor
Display	Brand new HD 23 inch LED display
Industrial Motherboards	Industrial Intel Platform
Filter	Euro III Special Filter
Temperature Control System	Efficient and intelligent heating and cooling group

    Injector Test   Equipped with Bo sch original imported CP3 pump and high-pressure fuel rail with DRV, can drive 6- cylinder solenoid valve and Piezoelectric injector, to carry out injector test under different working conditions Can select number of injector cylinder to carry out automatic measurement cylinder by cylinder, test bench RPM, Automatic steering control, and automatic rail pressure regulation, maximum up to 2000Bar, can stabilize within 10Bar, and can measure oil amount and generates report automatically. After comparing experimental data of hundreds of kinds of injectors, it can automatically judge the injector to be tested is good or not via reports. All injector drive channels have short circuit protection function.   Fuel Pump Test   Can drive different kinds of high-pressure pumps like Bos ch CP1/CP2/CP3, De lphi CRSP, De nso HP3/HP4, Sie mens DCP and De nso HP0 pump. Test bench RPM, Automatic steering control, Automatic rail pressure regulation, the maximum can reach 2000Bar,can stabilize within 10Bar, and can measure oil amount and generates report automatically. Experimental data comparison of hundreds of kinds of injectors. Through reports, it can automatically judge the injector to be tested is good or not. All high pressure pump drive channels have short circuit protection function.   Technical Parameters

Working Voltage	AC380V
Output Power	11~15 KW
Rail Pressure Range	0~2000 Bar
Rail Pressure Control Accuracy	±0.5 MPa
Fuel Pump Rotation Speed	0 ~ 4000 RPM
Diesel Filter Accuracy	< 5 U
Injector Sensor Range	0.1 mL - 600 mL
Injector Sensor Accuracy	0.1%
Pump Sensor Range	10 mL - 3000 mL
Pump Sensor Accuracy	0.5 %
Dimension	198 * 84 * 150 ( cm )
Net Weight	680 KG

    Affiliated features   Have data backup, system software update and data upgrade functions. With tens of accessories convenient installation test for different types of injectors and high-pressure pumps is ensured| inje Unique in China injectctor tester DRV clogging automatic warning function, will save a great amount of usage expenses for you.       Main Characteristics

German Original Glow Sensor The injector sensor, which is ellipsoid gear sensor, is of high precision and reveals fuel amount instantly. Thus it resolves the problems such as low speed, big error, incapable to measuring small volume and fragileness caused by using traditional weighing sensor; Fuel pump sensor covers great measuring range. With a steel inner core, it is stable, durable and difficult to clog while running big flow of fuel.



Several High-precision Diesel Filters Given that test bench runs fuel circularly, and all the pump, DRV, fuel co
