bock FK40/560k bock compressor FK40/560k bus FK40/560k air conditioning

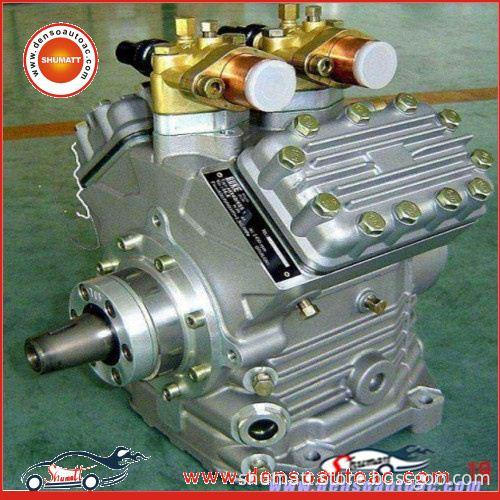

Bus Air conditioner compressor Bock FK40/655N   bock compressor bus FK40/560k air conditioning   Specifications   Bock auto ac compressor,auto ac compressor,Bock auto compressor.bus compressor,van compressor,truck compressor.   1. Long lifetime, original Bock compressor  2. Precise design Bock compressor, used for bus. 3. We offer most professional technique support and service to solve your bother. 4. Our air condition compressor support almost all brands of Bus, truck, van from China, Janpan, Korea, Europe and America. 5. Competitive price, Excellent performance. Good quality and prompt delivery, all kinds of air conditioner spare parts can be supplied   Kindly Attention: we also offer other auto diagnostic scanner, denso spark plug, bus AC parts, for detailed information, please patient visit https://www.densoautoac.com/ bock compressor bus FK40/560k air conditioning  bock compressor bus FK40/560k air conditioning   Technical data

Number of cylinders / Bore / Stroke	4 / 50 mm / 49 mm
Swept volume	385 cm³
Displacement (1450/3000 ¹/min)	33,50 / 69,30 m³/h
Mass moment of inertia	0,0043 kgm²
Weight	35 kg
Permissible range of rotation speeds	500 - 3500 ¹/min
Max. permissible pressure (LP/HP)	19 / 28 bar
Connection suction line SV	28 mm - 1 1/8 "
Connection discharge line DV	22 mm - 7/8 "
Lubrication	Oil pump
Oil type R134a, R404A, R407C, R507	FUCHS Reniso Triton SE 55
Oil type R22	FUCHS Reniso SP 46
Oil charge	2,0 Ltr.
Dimensions	385 / 325 / 370 mm
Length / Width / Height
LP = Low pressure,HP = High pressure

  Performance data and operating limits R134a Performance data 1450 1/min bock compressor bus FK40/560k air conditioning bock compressor bus FK40/560k air conditioning    Relating to 25 °C suction gas temperature, with no liquid subcooling The Bock software gives performance data for other operating points.   Limits of application for refrigerant R134a   Unlimited application range Reduced suction gas temperature * Compressor operation is possible within the limits shown on the diagrams of application. Please note the coloured areas. Compressor application limits should not be chosen for design purposes or continuous operation   This Original Bock AC compressor covers vehicles brands, and more:   Dimensioned drawing   bock compressor bus FK40/560k air conditioning bock compressor bus FK40/560k air conditioning   bock compressor bus FK40/560k air conditioning   Dimensions and connections

Dimensions and connections
SV	Suction line valve, tube	28 - 1 1/8
DV	Discharge line valve, tube	2022/7/8
A	Connection suction side, not lockable	1/8 " NPTF
A1	Connection suction side, lockable	7/16 " UNF
B	Connection discharge side, not lockable	1/8 " NPTF
B1	Connection discharge side, lockable	7/16 " UNF
C	Connection oil pressure safety switch OIL	1/8 " NPTF
D	Connection oil pressure safety switch LP	1/8 " NPTF
E	Connection oil pressure gauge	1/8 " NPTF
F	Oil drain	1/4 " NPTF
G	Opt. connection oil sump heater	M 22 x 1.5
H	Oil charge plug	1/4 " NPTF
K	Sight glass	2 x 1 1/8 " - 18 UNEF
L	Connection thermal protection thermostat	1/8 " NPTF
M	Oil filter	M 22 x 1.5
SV1	Opt. connection suction line valve	-
