higher quality TLT830WA car scissor lift used for wheel aligner machine 3T CE

Specifications TLT830WA car scissor lift

1,100% Original

2,four-wheel alignment

3,maintenance

4,cleaning

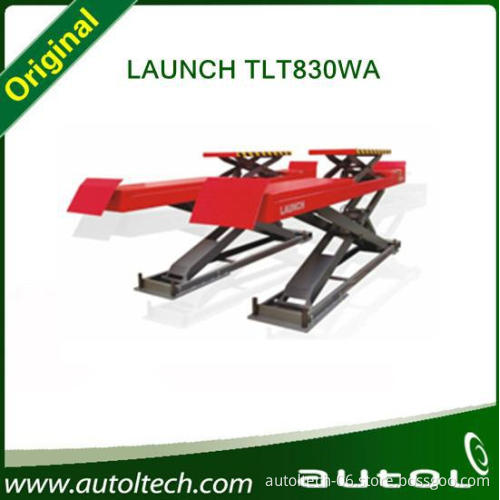

Origninal LAUNCH TLT830WA Wheel Alignment Scissor Lift Automatic Equipment      Product Description LAUNCH TLT830WA Wheel Alignment Scissor Lift

Wheel Alignment Scissor Lift (Rated Capacity:3Ton)

Used for lifting light vehicles under 3.0 tons for vehicle test, service, four-wheel alignment, maintenance or cleaning.
Equiped with scissor lift jack, capacity 2000 kg, hight of stroke 250 mm
Equiped with slideslip plates
Equiped with turntables for wheel alignment
Rated load capacity:4000KG
Lifting height:1900mm
Ascent/rest height:170mm
Length of runways:4555mm
Width of runways:500mm
Space of runways:Mitte/Mitte 1445 mm/1595 mm
Set-up lenght with drive-on ramps:5233mm
Set-up width:3455mm
Driving power:2.2KW
Quantity of oil:10I
Power supply voltage:380/50 220/50V/HZ

Spare Parts:
No. PartCode PartName
1 201011074 Big scissor Outer Arm
2 201020396 Big scissor Inner Arm
3 103020123 Anchor Bolt M18*160
4 103110065 Buffer Spring
5 201020409 Small Scissor Inner Arm
6 201020410 Small Scissor Outer Arm
7 103200873 Central Axle
8 103200856 Cylinder Pushing Axle
9 103200870 Cylinder Supporting Axle
10 103200865 Main Platform Roller
11 103990107 Power Pack (380V50Hz3ph)
12 201020314 control box of big Scissor
13 201021084 Small air cylinder assembly
