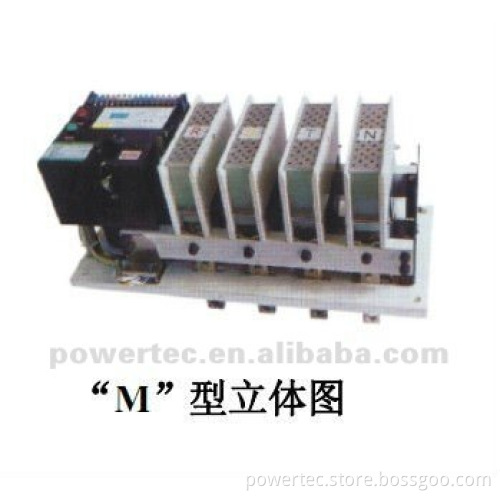

Good quality ATS ( Automatic Transfer Switch)

Specifications Diesel Generator Controller

Auto start & stop and protection

ATS function, set the delay start & stop

Record the running tim

Features of ATS ( Automatic Transfer Switch) : ATS can automatic transfer load from mains power supplying to emergency. When the mains power supply failure or voltage drop below 80% of normal voltage, ATS will auto start emergency generator set after a pre-set time (deponds on the generator’s starting time and transfer time). Once generator arrive at the rated speed, ATS will transfer the load to emergency generator sets automatically. *Manual/ Automatic optional *The interlocking of mechanical and electrical ensure safe tranfer, and prevent 2 powers parallel in any situation *State indication: Mains running/ Mains with load/ Generator with load *Installation: below 630A, wall type or stand type; above 630A, stand type. *Cable entry in the bottom   Automatic Transfer Switch ATS ( Automatic Transfer Switch) : *Automatic conversion between two-way electrical source. * Can choose different transfer switch. * Electronic automatic controller can protect the two-way electrical source when the voltage is too high or too low and lackprase. * Can be easily designed choice of the Lord and each reserve mode. * Optional LCD controller with communication interface.   ATS ( Automatic Transfer Switch) can realize Mains & generator transfer function SOCOMEC, SMARTGEN 4 poles auto transfer switch ATS (Automatic Transfer Swithc)

Current	Power	Dimension (L*W*H)(mm)
63A	≤35KW	450*300*550
100A	≤55KW	450*300*550
125A	≤69KW	450*300*550
160A	≤89KW	450*300*550
250A	≤139KW	550*300*550
400A	≤222KW	600*400*600
630A	≤349KW	600*400*600
800A	≤443KW	800*800*2200
1000A	≤554KW	800*800*2200
1250A	≤665KW	800*800*2200
1600A	≤887KW	800*800*2200
2000A	≤1108KW	1000*1000*2200
