Product Description
Product Description

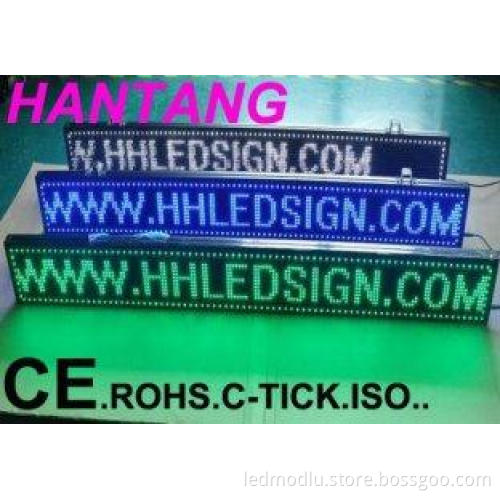

P10 Life Span 100000 Hours Driving Voltage 5 VDC Blue Traffic LED Sign
widely used for shops, hotel, bank, custom, bus station, traffic and so on...
| Technical Parameters of p10 single color outdoor display | |
| Usage | Outdoor |
| Pitch(mm) | 10 |
| Pixel Constitute | 1B |
| Pixel Density(dots/㎡) | 10000 |
| Module Size(mm) | 320*160 |
| Module Resolution | 32*16 |
| Recommended Minimum Viewing Distance(m) | ≥8 |
| Viewing Angle(°) | V40, H110 |
| Average Power Consumption | 300W/h |
| Brightness (white balance) | 2000cd/m2 |
| Size of cabinet(mm) | 640*640*80 |
| Weight of cabinet | 40kg/m2 |
| Cabinet pixels(dot) | 64*64 |
| Frame frequency | ≥60Hz |
| Refresh rate | ≥360Hz |
| Grey color | 256 |
| Brightness adjustment | 256 grade manual, 8 grade automatic |
| Average NO failure time | 5000 hours |
| Life span | 100000 hours |
| Working temperature | -30 oC →+60 oC |
| Driving Voltage | 5 VDC |
| Working Voltage | 220VDC |
| Scan mode | 1/4 |
| Display Function | text, numbers and other |
