Cabinet Size 576mm*576mm LINSN Control System Steel VCD pla
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|

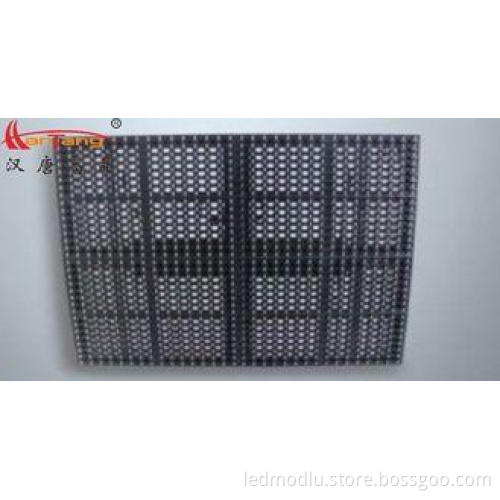

Cabinet Size 576mm*576mm LINSN Control System Steel VCD player Logo Led Curtain
Application :billboard, concerts and and stage, events...
P18 LED Curtain
|
No. |
Item |
Parameter |
|
1 |
Cabinet size |
576mm*576mm |
|
2 |
Density of pixel |
3086 dots/sqm |
|
3 |
Pixel composition |
1Red, 1Green, 1Blue |
|
4 |
Supply voltage |
AC 220V/50HZ or AC110V/60HZ |
|
5 |
Average power consumption |
520 w/sqm |
|
6 |
Pixel pitch |
18mm |
|
7 |
Luminance of white balance |
≥6000 cd/sqm |
|
8 |
View angle(H/V) |
110°/90° |
|
9 |
Gray scale |
display≥16.7 M color(synchronized) |
|
10 |
Driving method |
Static constant driving |
|
11 |
Refresh frequency |
>400 Hz/s |
|
12 |
Frame frequency |
>60 Hz/s |
|
13 |
View distance |
>18m |
|
14 |
Operating temperature |
-20~60 ℃ |
|
15 |
Mean Time between failures |
>100, 000 hours |
|
16 |
Working life |
> 1, 000, 000 hours |
|
17 |
Malfunction dot rate |
<0.0001 |
|
18 |
Display content |
Text, Graphics, Logo, Animation, live video, etc. |
|
19 |
Communication distance |
<100m (>100m optical fiber) |
|
20 |
Cabinet structure |
Steel |
|
21 |
LED Encapsulation |
SMD5050 (3 in 1) |
|
22 |
Control system |
LINSN |
|
23 |
Connection method |
Synchronized Computer(windows XP, vista), TV, DVD player, VCD player, VCR, etc. |
|
24 |
Waterproof Grade |
IP65 |
