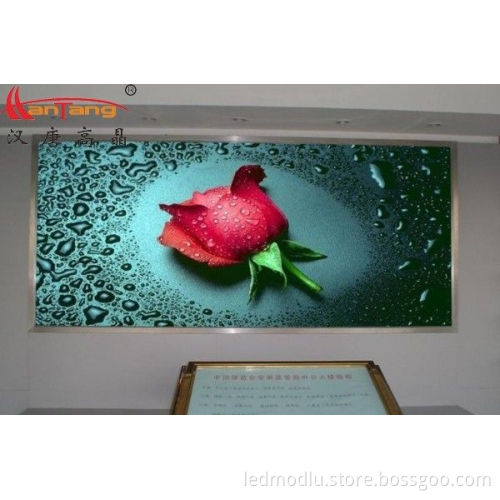

P4 High Definition Indoor LED Display For Shopping Center And Meeting Screen
Your message must be between 20 to 2000 characters
Contact NowP4 High Definition Indoor LED Display For Shopping Center And Meeting Screen
Pixel pitch:3mm, 4mm,5mm,6mm,7.62mm,8mm,10mm,16mm...
Application :billboard,concerts ,stage, events,stadium,advertising ,train station,shopping center,meeting screen ,airport ,mall...
Feature:
a. Display video, vivid and no flashing, to achieve live broadcast.
b. Display VCD, DVD and LD, etc, to satisfy the basic demand of recreational activities.
c. Multi-format documents are available, such as AVI, MOV, MPG, DAT & VOB
d. Brightness, contrast and saturation level is adjusted by software in the range of 256 levels.
e. Three kinds of display modes are provided: VGA+VIDE, Video, and VGA.
f.It supplies Video compression control function.
g. LED Display displays synchronously.
Specification:
| Pitch(mm) | 4 |
| Pixel Constitute | 1R1G1B |
| LED Chips--Epistar+Silan |
R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:(180-200mcd) G:(330-360mcd) G:(95-105mcd) |
| Pixel Density(dots/sqm) | 62500 |
| Module Size(mm) | 128*128 |
| Cabinet size(mm) | 640*640 |
| Viewing Distance(m) | ≥4 |
| Viewing Angle(°C) | V120, H140 |
| Average Power Consumption | 300W/sqm |
| Brightness (white balance) | ≥1800cd/sqm |
| Refresh rate | ≥1200Hz |
| Frame frequency | ≥60Hz/s |
| Average NO failure time | >5000 hours |
| Life span | >100000 hours |
| Working temperature | -20 °C~+65°C |
| Driving Voltage | 220±15% or 110±15% |
| Working Voltage | 5V±10% |
| Driving Method | 1/16 |
| Display Function | Video, Animation, Graphics, other |
| Operating system | Windows (2000/XP/Vista) |
| Control distance |
CAT5 cable:<100 m; Single fiber:<10 km |
