Universal Smart Lead Acid Battery Charger for 36V 2A
- Payment Type:
- L/C, T/T, D/P, Western Union, Paypal, Money Gram
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
Product Description
Product Description
Product Description

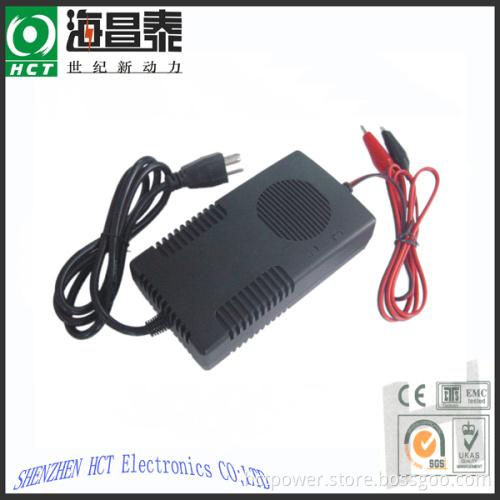

universal smart charger for 36V lead acid battery
SPECIFICATION
MODEL:H03600020-XXX-1
ISSUE DATE:2006-11-27
Smart 3-Stages SLA Battery charger
ITEMUNITSPECIFICATIONREMARK
INPUT
01Rating Input VoltageV ac100~240Vac 50-60Hz
02Input voltage rangeV ac90~264Vac
03Rating Input CurrentA2.0Arms
04Max.input powerW120
OUTPUT
05Rating output voltageV dc41.4V
06Output voltage rangeV dc32VDC~45VDC
07Suit with Battery type 36V 4.0~20.0Ah VRLA
08Charging current(stage1)A2.0±0.1@36V
09Charging voltage(stage2)V44.1V+-0.2V
Floating voltage(stage3)V41.4V+-0.20V
10Cut-off current(stage2-3)A<0.20+-0.05A
11Typical charging timehour8
12Max.output powerW90W
13Hold-on timemsNCInput:220Vac Output:Full load
14Ripple currentmA360Input:220Vac Output:Full load
15Charge finish condition V>44V +I<0.2A
16LED color Red:charging Green:finish/idle
17Output protect-OCP&OVP&Reverse input protection
18Efficiency%80%(min)At max.load
Environment
19Operate temperatureºC0~+40Full load&natural convection
20Operate humidity%RH20~90Relative humidity,non-condensing.
21Storage temperatureºC-40~+70
22Storage humidity%RH10~95Relative humidity,non-condensing.
23Cooling-Natural convection
24Temperature factor%--
25Vibration resistance 5MM/50HZ/600SNon-operating condition.
26Impact resistance 1 meter drop test>=3 timesNon-operating condition.
Mechanical
27Weightg100
28Sizemm154.9X84.9X45.7Casing only
29Connectors-Defined when order
Safety
30Max.temperature riseºC<40 on casingAt any line and Max.Load
31Safety standards-CE
32EMC standard-CE
33MTBFhrs40000
34Limited power sourceVA-
35ESDKv8.0
36Hi-Pot InsulationvInput to Output:1800(1 min.)For final nuit,cut-off current=10mA
| output voltage | 36V |
| output current | 2A |
