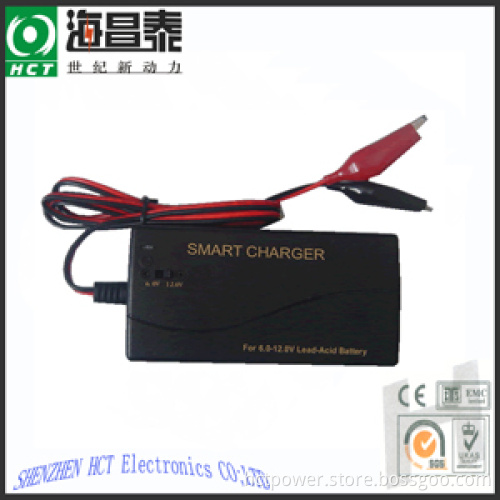

universal smart charger for 6-12V lead acid battery
SPECIFICATION
MODEL:H01200030-XXX-2
Smart 3-Stages SLA Battery charger
ITEMUNITSPECIFICATIONREMARK
INPUT
01Rating Input VoltageV ac100~240Vac 50/60Hz
02Input voltage rangeV ac90~264VacINPUT:220V OUTPUT:Full load
03Rating Input CurrentA0.8Arms
04Max.input powerW55
OUTPUT
05Rating output voltageV dc6.9Vdc&13.8Vdc
06Output voltage rangeV dc5VDC~7.5VDC&10VDC~15VDC
07Suit with Battery type 6V&12V 7~20Ah VRLA
08Charging current(stage1)A2.9±0.2@12V
09Charging voltage(stage2)V7.3V&14.5V±0.25V
Floating voltage(stage3)V6.9V&13.8V±0.20V
10Cut-off current(stage2 3)A<0.70+-0.05A
11Typical charging timehour8
12Max.output powerW48W
13Hold-on timemsNCInput:220Vac Output:Full load
14Ripple currentmA100Input:220Vac Output:Full load
15Charge finish condition V>7.0V +I<0.7A&V>14.0V +I<0.7A
16LED color Red:charging Green:finish/idle
17Output protect-OCP&OVP&Reverse input protection
18Efficiency%80%(min)At max.load
Environment
19Operate temperatureºC0~+40Full load&natural convection
20Operate humidity%RH20~90Relative humidity,non-condensing.
21Storage temperatureºC-40~+70
22Storage humidity%RH10~95Relative humidity,non-condensing.
23Cooling-Natural convection
24Temperature factor%--
25Vibration resistance 5MM/50HZ/600SNon-operating condition.
26Impact resistance 1 meter drop test>=3 timesNon-operating condition.
Mechanical
27Weightg250
28Sizemm120×60×37Casing only
29Connectors-Defined when order
Safety
30Max.temperature riseºC<40 on casingAt any line and Max.Load
31Safety standards-UL1310 EN60335-1EN60335-2-29
32EMC standard-EN55022 CLASSB ;FCC PART15
33MTBFhrs40000
34Limited power sourceVA-
35ESDKv8.0
36Hi-Pot InsulationvInput to Output:3000(1 min.)For final nuit,cut-off current=10mA
| output voltage | 6V |
| output Voltage | 12V |
| output current | 3A |
