Competitive 8W Gr10q Lamp Base LED 2D Lamp
- Payment Type:
- L/C
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C |
Product Description
Product Description

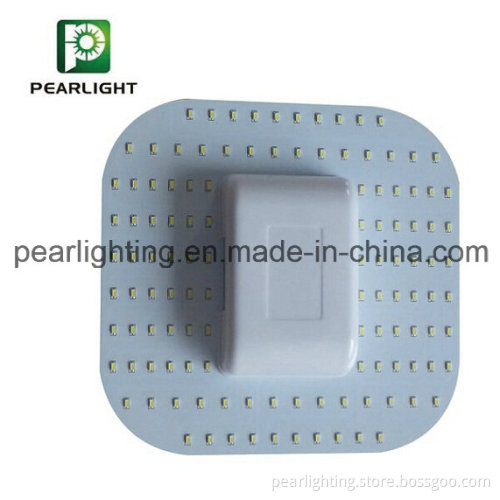

Competitive 8W LED 2D Lamp
Advantage
CE RoHS certificate GR10Q lamp base, high CRI
Warm / Natural / Cool / Cold white
Internal driver, input voltage AC85-265V
No UV or IR in the beam
Easy to install and operate
Energy saving, long service life
Light is soft and uniform, safe to eyes
Instant start, NO flickering, NO humming
Green and eco-friendly without mercury
Application
Widely used in supermarket, home, office, hotel, hospital, school, meeting room, library, residential, etc.
Notice For User
Please turn off power before install or change assembly parts.
The input voltage and lamps should be matched, after connecting the power line, please make sure the wiring section is insulated.
Make sure to remove or bypass the electronic ballast in the fixtures before install the lamps.
No-professionals, must not install and disassemble the lamps.
Advantage
CE RoHS certificate GR10Q lamp base, high CRI
Warm / Natural / Cool / Cold white
Internal driver, input voltage AC85-265V
No UV or IR in the beam
Easy to install and operate
Energy saving, long service life
Light is soft and uniform, safe to eyes
Instant start, NO flickering, NO humming
Green and eco-friendly without mercury
Application
Widely used in supermarket, home, office, hotel, hospital, school, meeting room, library, residential, etc.
Notice For User
Please turn off power before install or change assembly parts.
The input voltage and lamps should be matched, after connecting the power line, please make sure the wiring section is insulated.
Make sure to remove or bypass the electronic ballast in the fixtures before install the lamps.
No-professionals, must not install and disassemble the lamps.
|
PRODUCT SPECIFICATIONS | ||||
| Product name | LED 2DLamp | |||
| Part No | PT-2DLamp-8W | |||
| Light Type | 2DLamp | |||
| Dimension | 120*120*35mm | |||
| Technical Characteristic | ||||
| Color | Warm white | Natural white | Cool white | Cold white |
| Color temperature | 2700-3000K | 4000-4250K | 6000-6500K | 7000-8000K |
| CRI | >70 | >70 | >70 | >70 |
| Lumen | 778.4 | 796.0 | 830.4 | 812.8 |
| Lumen Efficacy | 97.3 | 99.5 | 103.8 | 101.6 |
| Input Power | 8 W | |||
| Viewing Angle | 120 degree | |||
| Input Voltage | AC85-265V 50/60Hz | |||
| PFC | >90% | |||
| Equivalent | 20W fluorescent lamp | |||
| Waterproof Rating | IP40 | |||
| MATERIALS | ||||
| LED Brand | EPISTAR | |||
| LED Type | SMD3014 | |||
| LED QTY | 80 PCS | |||
| Housing | PC | |||
| Housing color | White | |||
| OTHERS | ||||
| Operating Temperature | -20ºC TO 45ºC | |||
| Operating Humidity | 20%-70% RH | |||
| Storage Temperature | -30ºC TO 80ºC | |||
| Storage Humidity | 10%-75% RH | |||
| Application | Indoor | |||
| Enviroment Protection | RoHS | |||
| Safety Certification | CE | |||
| Warranty Time | 3 Years | |||
| Size | Qty/ Carton | Net Weight/ Carton | Gross Weight/ Carton | |
| inner box | 160*155*45mm | 1 | 0.105kg | 0.175kg |
| outer box | 340*330*250mm | 20 | 2.10kg | 4.20kg |
| Trouble Shootings | ||||||
| Troubles | Check points | |||||
| Flickering of the lamps | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies | |||||
| Out of working | Please check the connection | |||||
