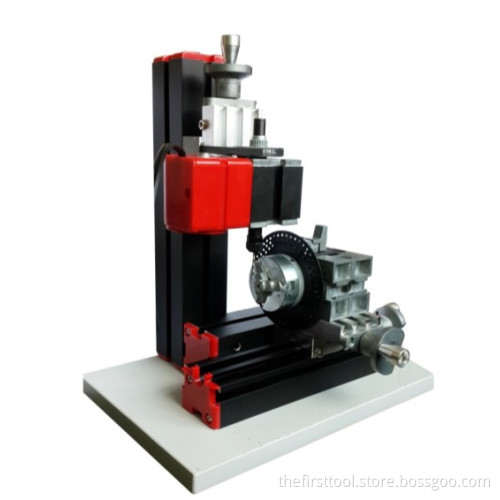

Mini Drilling Machine with Dividing Attachment for DIY Tools (Z10002M)

Dividing drilling machine features:
Machine main parts, such as the spindle box, drill press rocker, tailstock, pedestal, slider, motor blades, connection piece, dividing locator, gear and so on are all metal
1, used with index plate, the circular workpiece can be equal drilling.
2, there are three groups on dial perimeter portions of the distribution of holes, respectively is 36, 40, 48 holes. Can choose dividing hole according to actual needs of the group.
3, the color of the machine tool is composed of red and black classical collocation.
Technical parameters:

1, Moter speed: 2, 0000rpm/min.
2, Input voltage/current/power: 12VDC/2A/24W.
3, processing materials: Wood, engineering plastics, soft metal (aluminum, copper, etc. ).
4, three jaw chuck clamping workpiece diameter of 50 mm.
5, transformer overcurrent, overvoltage and overheating protection.
6, the handwheel with accuracy of 0.02 mm scale line, increase the machining precision of the workpiece
