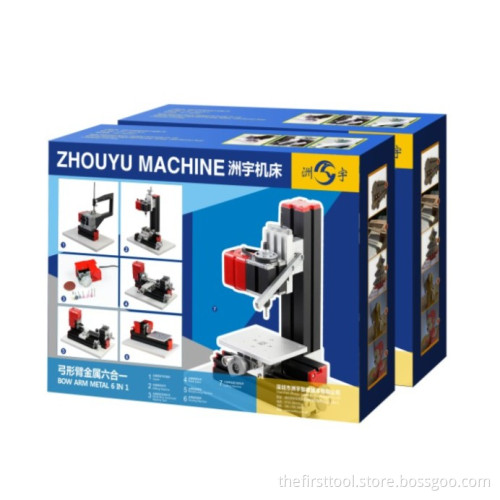

Bow Arm Metal 6 in 1 Kit Mini CNC Machine for DIY Toys (Z6000MG)

Bow arm 6 in 1 is a kit can be composed of six kinds of different function of the machine, sawing machine, wood-turning, lathe, milling machine, drilling machine, sanding machine ), one time can only use one kind of assembly of machine tools.

Features:
Machine main parts: Such as the spindle box, the middle piece, wire saw, at the bottom of wire saw box, motor blades, gear, gongs bed support, small slider, slider, drill press rocker, bedplate of drill, jigsaw, connection piece, abrasive paper disc, dividing locator, all-metal structure is used in milling machine with vice and so on all have a belt protection cover, small grinding wheel, grinding wheel cover.
1. Motor speed: 20000 RPM/min.
2. The input voltage/current/power: DC12VDC / 2 a / 24 w,
3. Table size: 90 mm x 90 mm
4. Wire saw, processing the largest hardwood cutting saw depth is 4mm, plywood is 7 mm, cork is 18mm, organic glass is 2mm, thin aluminium is 0.5mm.
5. The slider trip: 30 x 135mm
6. Chuck: 1-6 mm
7. Vice clamping size: 50mm
8. Max. Processing diameter: 45mm
Has the bow arm, bow arm and fixed parts of components such as the material is made from metal, increase the bow arm after improve the durability of saw blade.
