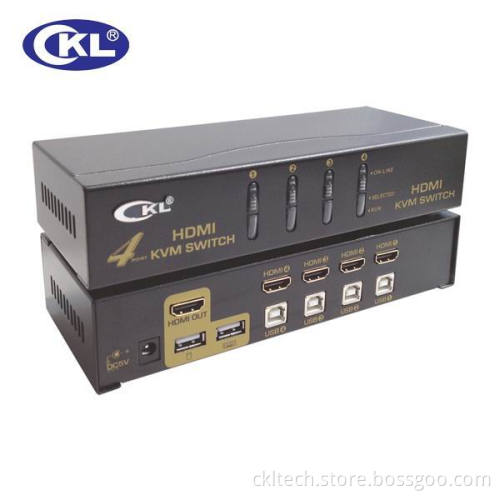

High Quality 4 Port HDMI Kvm Switch
- Payment Type:
- L/C, T/T, D/P
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China(Mainland) |
|---|---|
| Payment Type: | L/C, T/T, D/P |
Product Description
Product Description
Features
1. One USB or PS/2 console controls 2/4 HDMI-interface computers 2. Switch Mode: A. Button push b. Keyboard Hot-Key switch c. Mouse switch(need install software) 3. HDMI digital monitor support - fully compliant with HDMI 1.4a; Also HDCP compliant 4. Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI) 5. Support Hot plug & play 6. Supports widescreen resolutions 7. OS support - Windows, Linux, and Mac 8. Auto Scan Mode for monitoring all computers and HDMI devices
Switching Operation Instructions
1. MANUAL( push button)
Simply press the appropriate port selection switch on the front panel. After you press the switch, the select LED lighting indicate that the port is current selected.
Hot Key allows you to conveniently to access connected PCs directly from the keyboard, instead of having to manually select them by pressing port selection switches. To select a port with the hot key method, do the following:
[Scroll Lock] + [Scroll Lock] (switch inturn)
[Ctrl]+[Alt]+1/2/3/4+[Enter] switch freely (need install software)
(only for Windows)
If you want to switch by click mouse, please install the software in CD.
1. One USB or PS/2 console controls 2/4 HDMI-interface computers 2. Switch Mode: A. Button push b. Keyboard Hot-Key switch c. Mouse switch(need install software) 3. HDMI digital monitor support - fully compliant with HDMI 1.4a; Also HDCP compliant 4. Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI) 5. Support Hot plug & play 6. Supports widescreen resolutions 7. OS support - Windows, Linux, and Mac 8. Auto Scan Mode for monitoring all computers and HDMI devices
Switching Operation Instructions
1. MANUAL( push button)
Simply press the appropriate port selection switch on the front panel. After you press the switch, the select LED lighting indicate that the port is current selected.
Hot Key allows you to conveniently to access connected PCs directly from the keyboard, instead of having to manually select them by pressing port selection switches. To select a port with the hot key method, do the following:
[Scroll Lock] + [Scroll Lock] (switch inturn)
[Ctrl]+[Alt]+1/2/3/4+[Enter] switch freely (need install software)
(only for Windows)
If you want to switch by click mouse, please install the software in CD.
