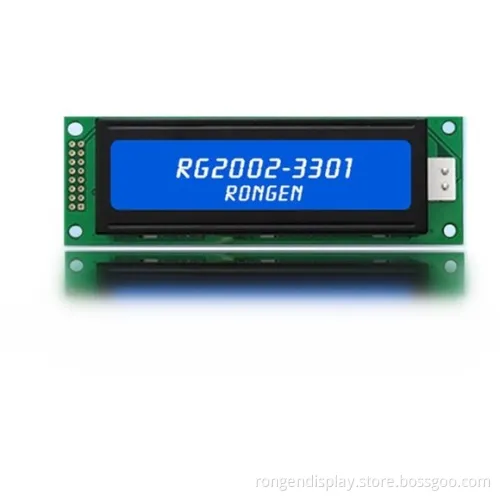

Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
  • Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
  • Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
  • Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
  • Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
  • Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
  • Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ

Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG2002-3301
Display Technology
STN
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Contrast Ratio
6.0
Resolution
20*2
Operating Temperature
-20~+70
Storage Temperature
-30~+80
Backlight
LED
Controller CPU
Stm8s003f3p6
Uart to USB Chip
FT232rl
Data Bus
Uart(USB or Ttl)
Active Area
73.5*11.5mm
Outline Dimension
116.0*37.0*15.0mm Max.
Transport Package
Standard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month

Product Description

Specification
Screen size 3.3"(Diagonal)
Display color White
Background color Blue
Type STN
View angle direction 6'clock
Driver mode 1/64 DUTY 1/9 BIAS
Backlight LED
Controller CPU STM8S003F3P6
UART to USB chip FT232RL
Data Bus UART(USB or TTL)
Operation -20 oC ---- +70oC
Storage -30 oC ---- +80oC
Number of Dots 20*2
Dot size 0.60*0.65mm
Dot pitch 0.65*0.70mm
Viewing size 82.6*18.4mm
Active area 73.5*11.5mm
Outline dimension 116.0*37.0*15.0mm Max.
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ

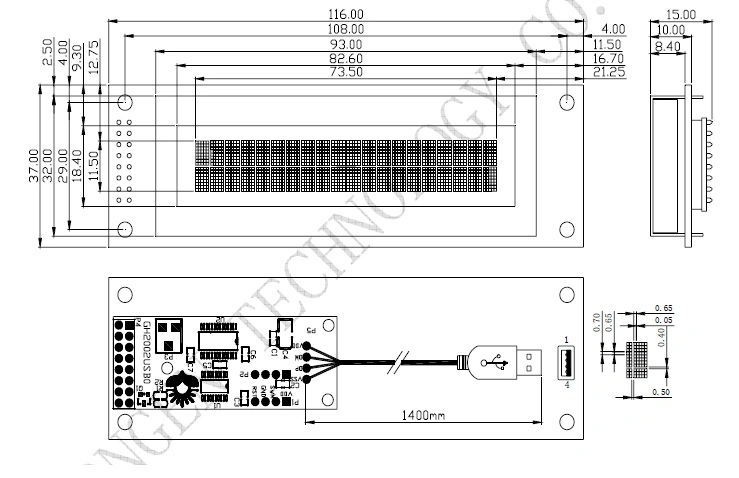

Outline drawing
Stn 3.3 Inch 20*2 Resolution Stn Display for Electronic Organ
