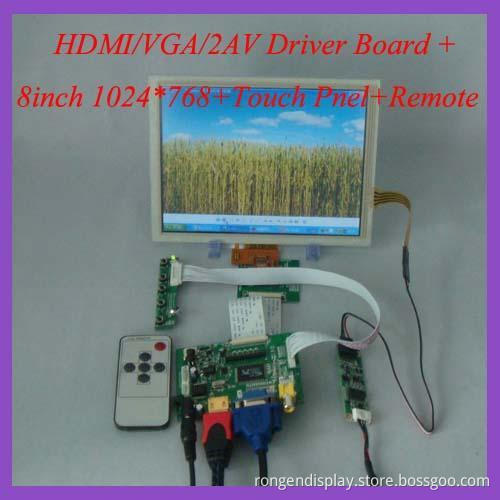

8inch LCD Screen with Touch Panel and Driver Board

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

OEM 8" TFT LCD Panel module 1024*768 resolution
8" TFT LCD screen with/without TP, 8 inch TFT LCM display for digital photo frame, TFT LCD manufacture

8 inch TFT LCD with high resolution(Innolux EJ080NA-04C)
Brand: Innolux
Screen size: 8"
Resolution: 1024*768
Luminance: 250CD/m2
Contrast Ratio: 700: 1
Aspect Ratio: 4: 3

Operating Temperature: -10~50
Storage Temperature: -20~60
Pixel Pitch: 0.1581x0.1581mm (WxH)
Surface: Antiglar
Active Area: 162.048x121.536mm (WxH)
Bezel Area: 165.2x124.7 mm(WxH)
Outline Dimension: 183x141.0mm (WxH)
Outline Depth: 3.4+-0.3mm (Typ. )
Touch Panel: Without TP
Response Time: 6/14(Typ. )(Tr/Td)
Viewing Angle: 75/75/75/75(Typ. )(CR>=10)(L/R/U/D)
Interface Type: FPC
Interface Pin Pitch: 0.5mm
Interface Pins: 40pins
Backlight: LED
