Rg062idw1-a ODM 6.2 Inch High Brightness TFT LCD Screen

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG062IDW1-A

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Size

6.2

Resolotion

800X480

Luminance

400CD/M2

Contrast Ratio

600:1

Display Mode

Tn, Normally White, Transmissive

Response Time(Ms)

16 Ms (Typ. ) (Tr / Td)

Viewingangle

75/75/70/70 (Typ. )(Cr≥ 10

Operation Temperature

-20 ~ 70 ° C

Storage Temperature

-30 ~ 80 ° C

Active Area

137.52*77.23mm

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

8528511000

Production Capacity

100, 000/Month

Product Description

Introduction

RG062IDW1-A is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching
device. This model is composed of a TFT LCD panel, a driving circuit and a back-
light system. This TFT LCD has a 6.2 (16:9) inch diagonally measured active
display area with 800 horizontal by 480 vertical pixel resolutions.

Features
6.2 (16:9 diagonal) inch configuration
6 bits + FRC driver with 1channel TTL interface
LED Backlight
Up/Down, Left/Right reversion selection
RoHS/ Halogen Free Compliance

General information

Item	Specification
Outline Dimension	155.2 x 88.2 x 5.0 (Typ.) mm
Display area	137.52(H) x 77.232(V) mm
Number of Pixel	800 RGB (H) x 480(V) pixels
Pixel pitch	0.1719(H) x 0.1609(V) mm
Pixel arrangement	RGB Vertical stripe
Display mode	Normally white
Surface treatment	Antiglare, Hard-Coating(3H) with EWV film
Weight	120 (Typ.) g
Back-light	Side-Light type
Power Consumption	B/L System 1.54 (Max.) W

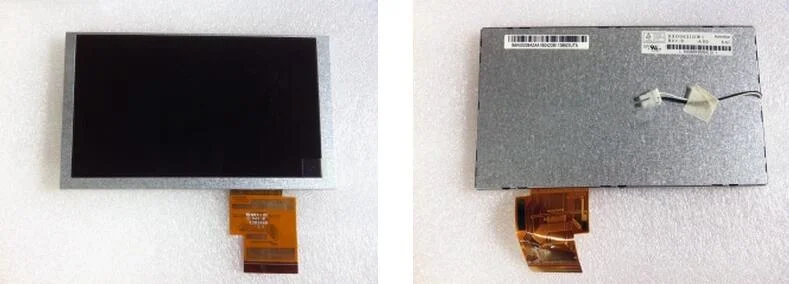

Product Picture

Rg062idw1-a ODM 6.2 Inch High Brightness TFT LCD Screen

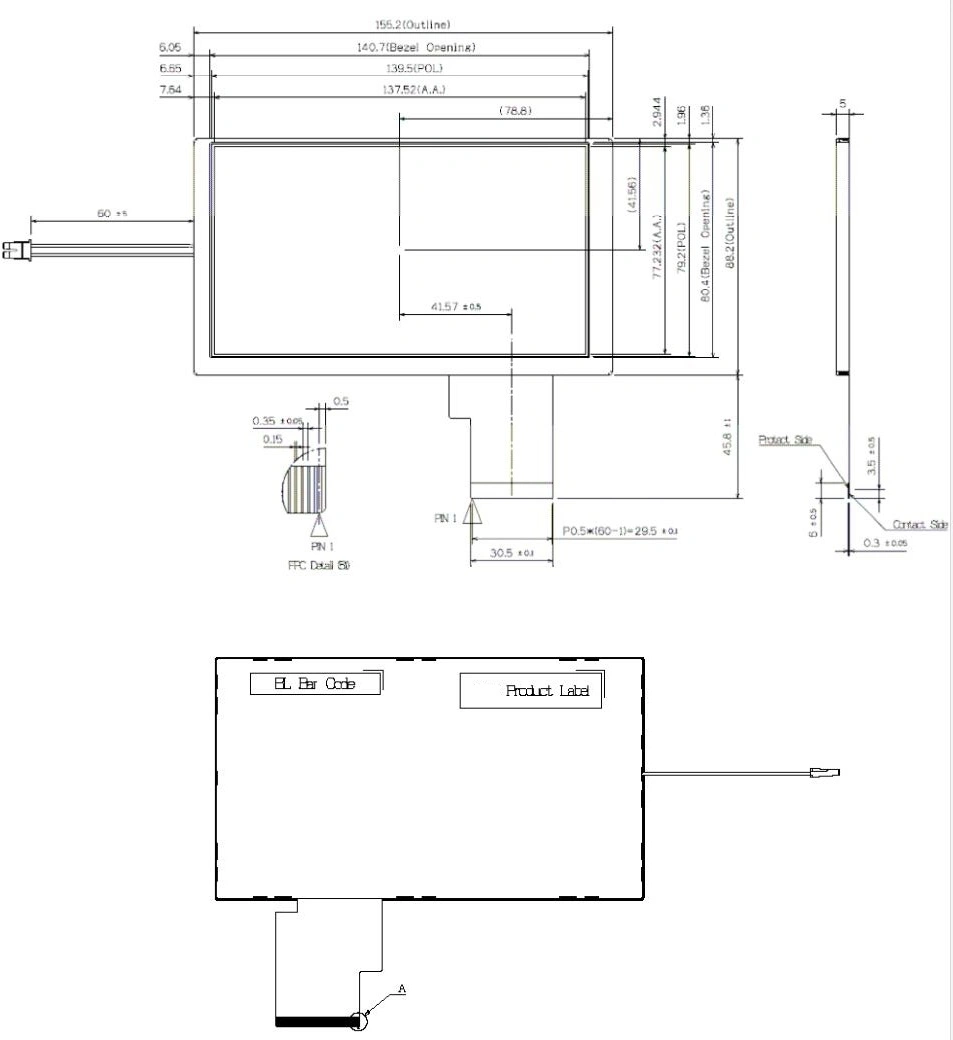

Outline Dimension

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
