6.2 Inch TFT LCD Screen High Brightness Doorphone Display Rg062la01cw

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG062LA01CW

Widescreen

Response Time

16ms

Not 3D

Interface Type

Ttl

Resolution

800*480

Luminance

450CD/M2

Contrast Ratio

600:1

Viewing Angle

150/140

Interface Pin

Ttl 60 Pin

Active Area

137.52X77.232

Module Size

155.2X88.2X5.0

Colors

16.2m

Operating Temperature

-20 ~ 70

Storage Temperature

-30 ~ 80

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

8528511000

Production Capacity

15000PCS/Month

Product Description

General specifications

RG062LA01CW is 6.2" color TFT-LCD (Thin Film Transistor Liquid Crystal Display)
module composed of LCD panel, driver ICs ,control circuit and LED backlight. By applying
800×480 images are displayed on the 6.2" diagonal screen. Display 16.2M colors by R.G.B
signal input.

ITEM	SPECIFICATION
Number of Pixels	800RGBx480
Pixel Pitch(mm)	0.1719x0.1609
Color Pixel Arrangement	Strip RGB
Module Size(mm)	155.2 x 88.2 x 5.0
Display Area(mm)	137.52 x 77.232
Module Weight(g)	115 g(Typ.)
Brightness(cd/m^2)	450(Typ.)/360(Min.)
Contrast Ratio	min. 480 typ. 600
Response Tims(ms)	16(Max.)
Viewing Angle(H/V)	--CR>10 150/140
Color Saturation	50%
Color Coordinate	-White x=0.310, y=0.330
Display Mode	TN
Surface Treatment	Anti-Glare
Luminance Uniformity(LW)	min.70% (9 points)
Optimum Viewing Direction	6 O'clock
Electrical Interface	TTL(Cascade), 60pin
Inversion	dot Inversion
Total Module Power(W)	PLCD=0.321W (typ)/ 0.396 W (max); PLED=1.17 W typ.)/1.3W(max.)
	Total:1.491W (typ)/1.696W (max)
Number of Colors	16.2M

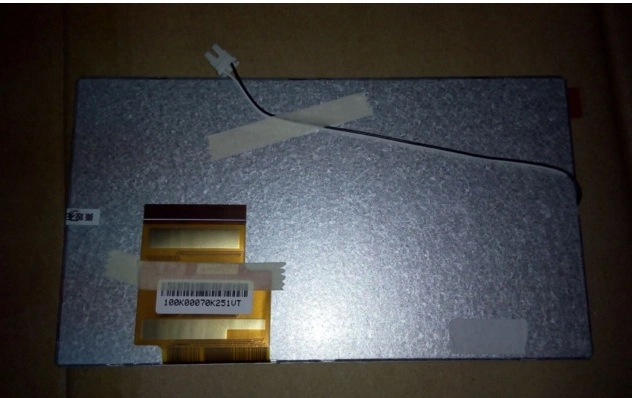

Product Pictures

6.2 Inch TFT LCD Screen High Brightness Doorphone Display Rg062la01cw

Products Application

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
