Inch TFT IPS Touch LCD Display Screen Module High Resolution 320*240
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG040GHT-02
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
240*320
Luminance
250CD/M2
Contrast Ration
500:1
Active Area
82.08*61.56 mm
Outline Size
96*76*3.1 mm
Operation Temperature
-10~60
Storage Temperature
-20~70
Back Lights
3X3LED
Interface
24bits RGB/MCU
Controller
Ili9322g
View Angle
6 O′clock
Connector
54pin
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General specification

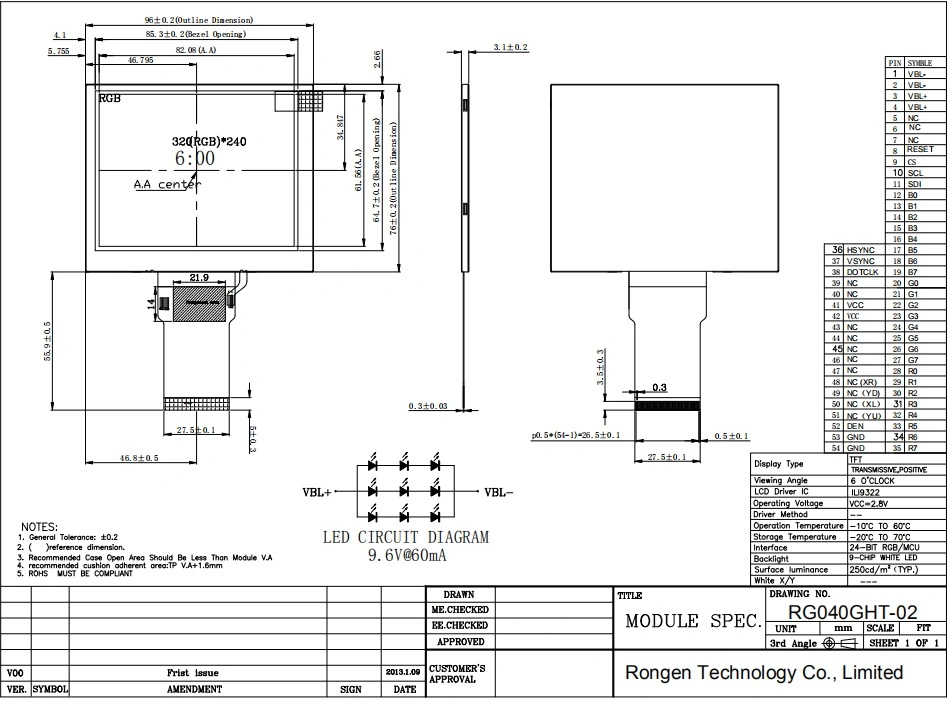

Mechanical drawing
| Item | Contents |
| Lcd type | Tft/transmissive |
| Module size | 96.00*76.00*3.10 mm |
| Active size | 82.08*61.56 mm |
| Pixel pitch | 0.198*0.198 mm |
| Number of dots | 320*240 |
| Diver IC | Ili9322 |
| Interface type | 24-bit rgb/mcu |
| Top polarizer type | Anti-glare |
| Recommend viewing direction | 6 o'clock |
| Gray scale inversion direction | 12 o'clock |
| Colors | 16.7m |
| Backlight type | 9-chip white led |
| Touch panel type | Without |
Mechanical drawing
Ronen have concentrate on designing and manufacturing display products for more than 12 years.We can offer monochrome tn/stn, cstn, tft and oled displays and other display components.Our transflective tft displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable tft displays,our product is your best choice.And our ips and ltps panels are wide viewing angles, they are widely used in automotive electronics applications and medical instruments.
Further more, each unit bears sgs, tuv and rohs marks.The innovative flat panel display and products provided by our elite team can keep pace with such a fast-changing global marketplace.We can also meet your display specifications, and satisfy your individual request.The most competitive and satisfying products have won us high reputation.
Now ronen display co.Ltd is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.
Applications
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display | Mobile device,watch,toy,medical equipment, office electronic equipment,camera, air-condition display, etc. |
| Mid-size tft lcd display | Mobile device,medical equipment,car, automotive product,industrial control equipment,pos,pda, household video doorbell, air-condition display,etc. |
| Big-size tft lcd display | Educational product,automotive product,video door phone, audiovisual equipment,dvd player,media play,tablet pc, security products,etc. |
| Tn/stn//fstn/oled | Elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | Industrial control equipment,electronic product,toy, security product,it digital product, sports equipment,etc. |
