Rg080idw1-A00 ODM 8inch TFT LCD Screen 800*480 WVGA LCD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG080IDW1-A00
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Non-Customized
Panel Size
8"
Resolotion
800*480
Luminance
200CD/M2
Contrast Ratio
500:1
View Angle
70/70/50/60
Interface
Ttl, 60pins
Outline Size
192.8*116.9*6.4mm
Input Voltage
3.0/10/15/-9V (Vcc/Avdd/Vgh/Vgl)
Display Colors
262k/16.1m 6bit
Application
Digital Photo Frame Panel/Portable DVD Screen
Transport Package
Stardardc
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
8528511000
Production Capacity
100, 000/Month
Product Description
Brand: HANNSTAR
HS: 8528511000
Spc: HSD080IDW1-A00 TFT 8inch LCD screens 800x480 200CD/m2
Additioal Comments:
Basic information
Panel type: a-Si TFT-LCD, panel
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Vibration Resistance:2.9G(28.4m/s2)
Remarks:FPC length 72.2mm
Mechanical Features:
Pixel Configuration: RGB vertical stripes
Pixel Density:116 PPI
Aspect Ratio: 16:9 (H:V)
Surface: Antiglare,Hard coating(3H)
Holes& Brackets: Side mounting holes(4-M2)
Weight:240g
Optical Features:
Luminance: 450CD/m2
Contrast Ratio: 500: 1(Typ. )
White Variation: 1.43(Max.)(9 points)
Backlight System:
Lamp Type: WLED
Lamp Shape: Array
Lamp Life Time: 20K (Min.)(Hours)
Lamp Voltage: 12.0V
Lamp Current:120mA
Lamps Power Consumption: 1.44
Backlight interface: JST BHSR-02VS-1
Merchanical Drawing
HS: 8528511000
Spc: HSD080IDW1-A00 TFT 8inch LCD screens 800x480 200CD/m2
Additioal Comments:
Basic information
Panel type: a-Si TFT-LCD, panel
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Vibration Resistance:2.9G(28.4m/s2)
Remarks:FPC length 72.2mm
Mechanical Features:
Pixel Configuration: RGB vertical stripes
Pixel Density:116 PPI
Aspect Ratio: 16:9 (H:V)
Surface: Antiglare,Hard coating(3H)
Holes& Brackets: Side mounting holes(4-M2)
Weight:240g
Optical Features:
Luminance: 450CD/m2
Contrast Ratio: 500: 1(Typ. )
White Variation: 1.43(Max.)(9 points)
Backlight System:
Lamp Type: WLED
Lamp Shape: Array
Lamp Life Time: 20K (Min.)(Hours)
Lamp Voltage: 12.0V
Lamp Current:120mA
Lamps Power Consumption: 1.44
Backlight interface: JST BHSR-02VS-1
Merchanical Drawing

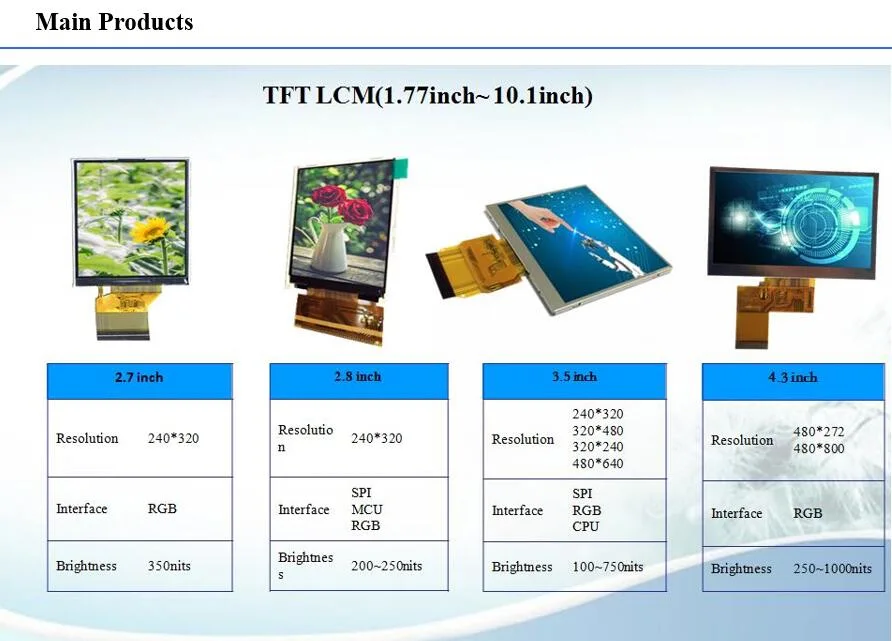

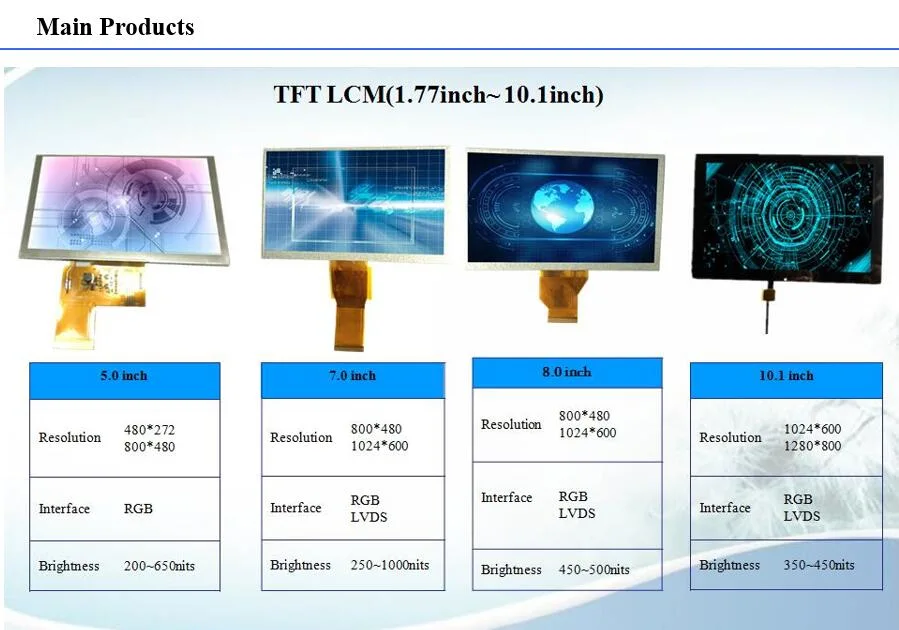

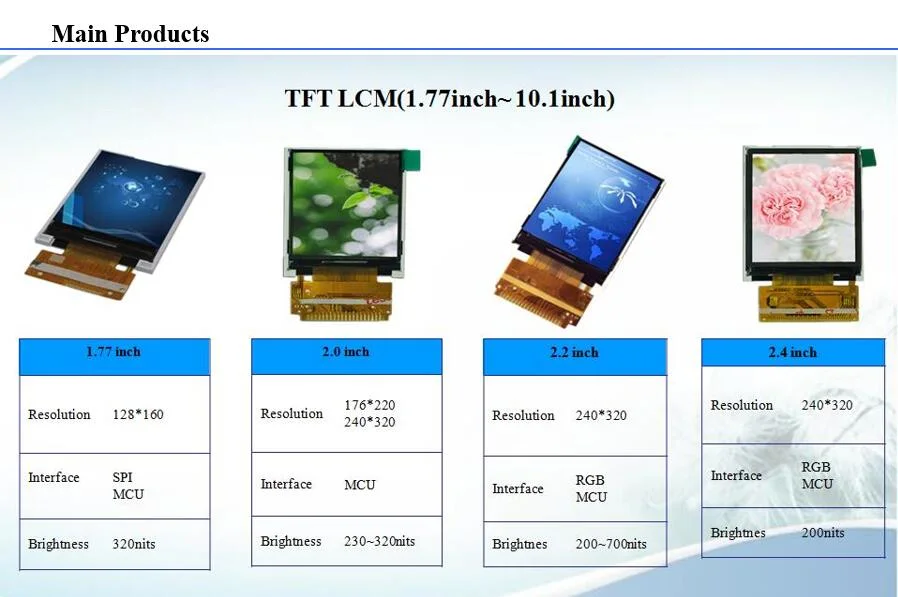

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
