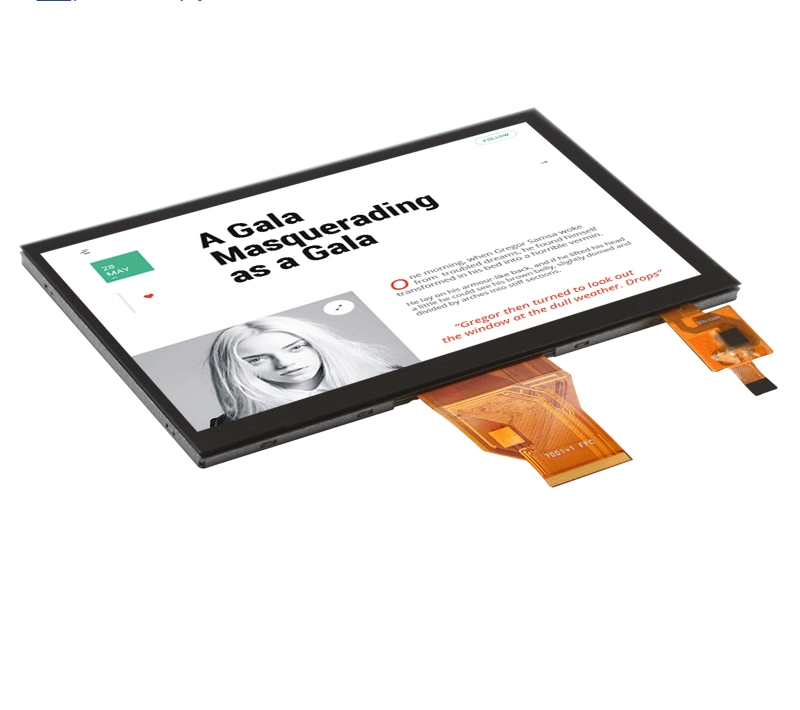

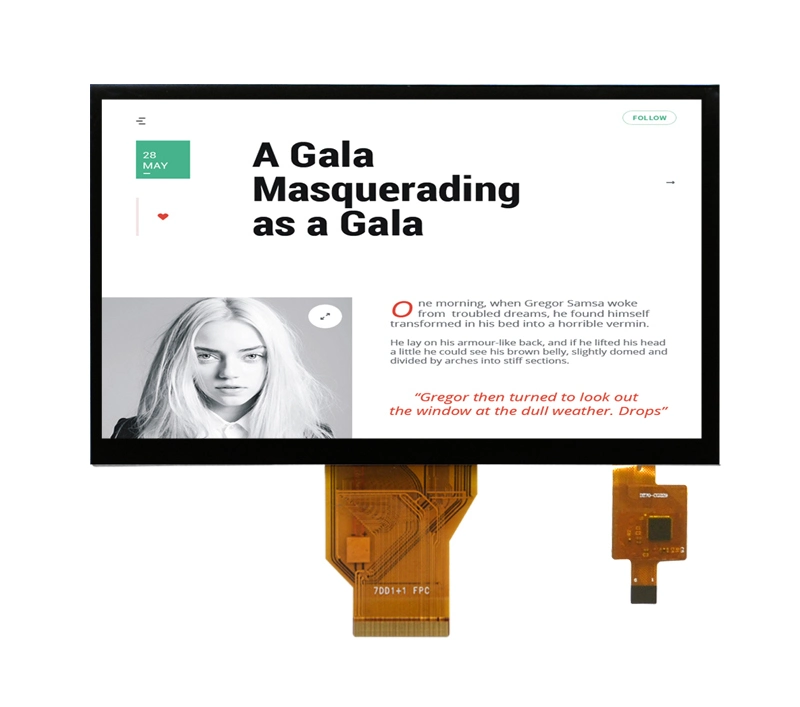

7.0" LCD with Capacitive Touch Screen Display FT5426 LCD Panel with Capacitive Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG070CQX-02C
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
LCD Type
TFT
Pin
50
Resolution
800*480
Operating Temperature
-20~70
Storage Temperature
-30~80
Display Color
16.7m
Active Area
154.08X85.92 mm
CTP Controller
FT5426
Backlight
3X9-LEDs
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
| Feature | Specification | Unit | Drawing | |
| Dispaly Spec | Brand | RONEN | - | |
| Size | 7.0 | inch | ||
| Resolution | 800*480 | dots | ||
| Pixel Pitch | 0.1926(H)*0.1790(V) | mm | ||
| Display Mode | TN/NW | - | ||
| Viewing Direction | 12 | O'clock | ||
| Grayscale Direction | 6 | O'clock | ||
| Luminance | 420 | cd/m2 | ||

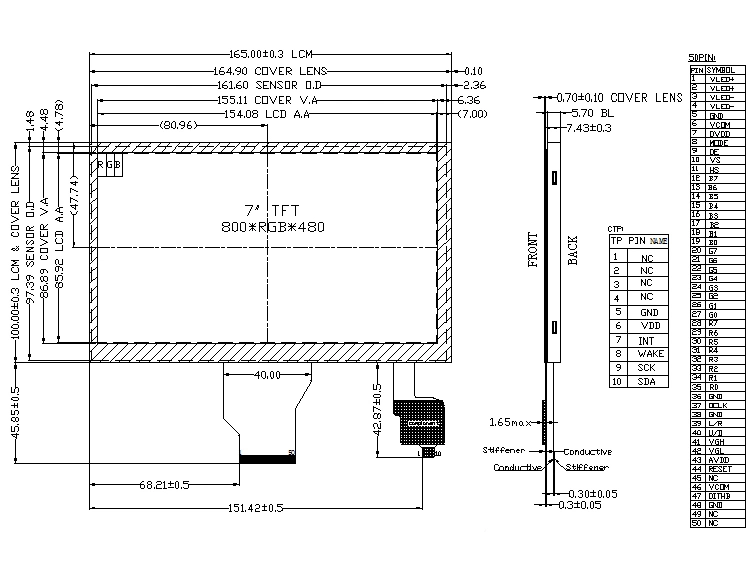

Mechanical Characteristics |
LCM(W*H*D) | 165.00*100.00*7.43 | mm | |
| Active Area(W*H) | 154.08*85.92 | mm | ||
| With/Without TP | With CTP | - | ||
| LED Numbers | 3S9P-LED | pcs | ||
| Operation Temp. | -20~+70 | ºC | ||
| Storage Temp. | -30~+80 | ºC | ||
Electrical Characteristics |
Interface | 24bit RGB/50PIN | - | |
| LCM Power Supply | 3.3 | v | ||
| LED Power Supply | 9.0 | v | ||
| Color Depth | 16.7M | - | ||
| LCM Driver IC | HX8664+HX8264 | - | ||
| CTP Driver IC | FT5426 | - | ||
General Specification:
1.We are a professional designer manufacturer of LCD module and capacitive touch module.
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose
us.
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose
us.
