TFT LCD 7.0inch 800X480 with Touch for Electrical Automation Control System
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowBasic Info.
Product Description
| Item | Contents |
| LCD Type | TFT |
| Display color | 16.7M |
| Viewing Direction | 12 O'Clock |
| Gray scale inversion direction | 6 O'Clock |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |
| Module size | Refer to outline drawing mm |
| Active Area(W×H) | 154.08X85.92 mm |
| Number of Dots | 800×480 dots |
| Controller | - - |
| Power Supply Voltage | 3.3 V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | 3X9-LEDs (white) pcs |
| Interface | RGB888 |

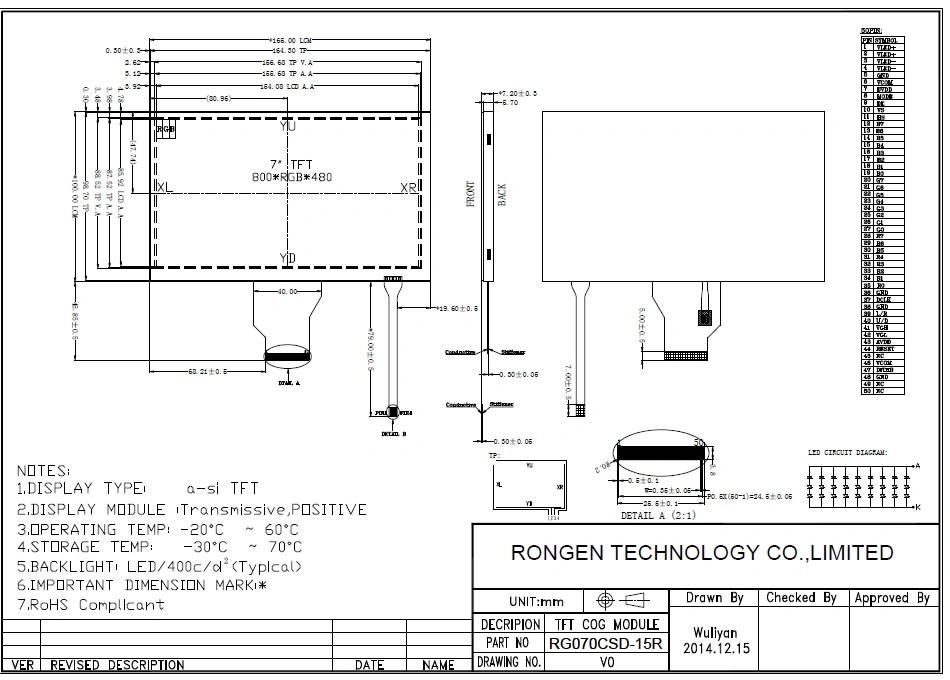

Merchanical Drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
