7 Inch 4wire USB Controller Card and Resistive Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowBasic Info.
Product Description
Specifications
7 inch 4 wire touch screen
High sensitivity&stability&durability
Easy installation
With RoHS Compliance
12 months warranty
Product Description:
| Screen Size: |
7''
|
| Interface Type: |
Serial, USB
|
| Operating voltage: |
<=10V
|
| Transmittance: |
>=85%
|
| Operation temperature: |
-10°C-60°C
|
| Type: |
Resistive, Film to Glass
|
| Resolution: |
800x480
|
| Response time: |
<=10ms
|
| Surface hardness: |
>=3H(pencil)
|
| Resistance: |
X:400-920/Y:150-400
|
| Outline size(mm): |
163.5 x 99.0
|
| Linearity: |
<=1.5%
|
| Operation force: |
20g~80g
|

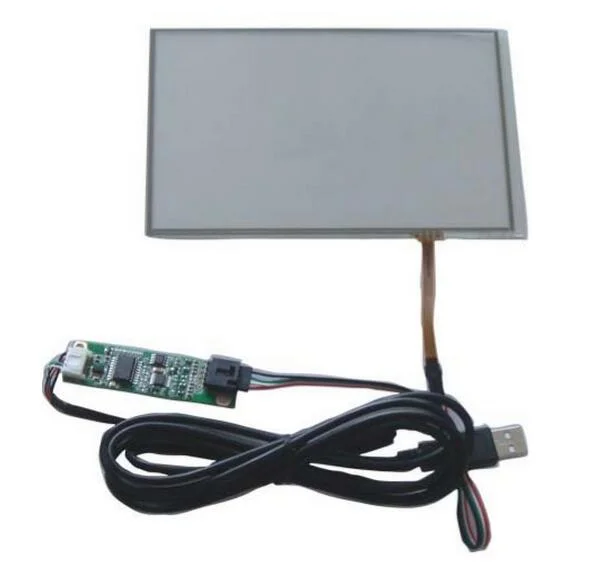

Product Picture:

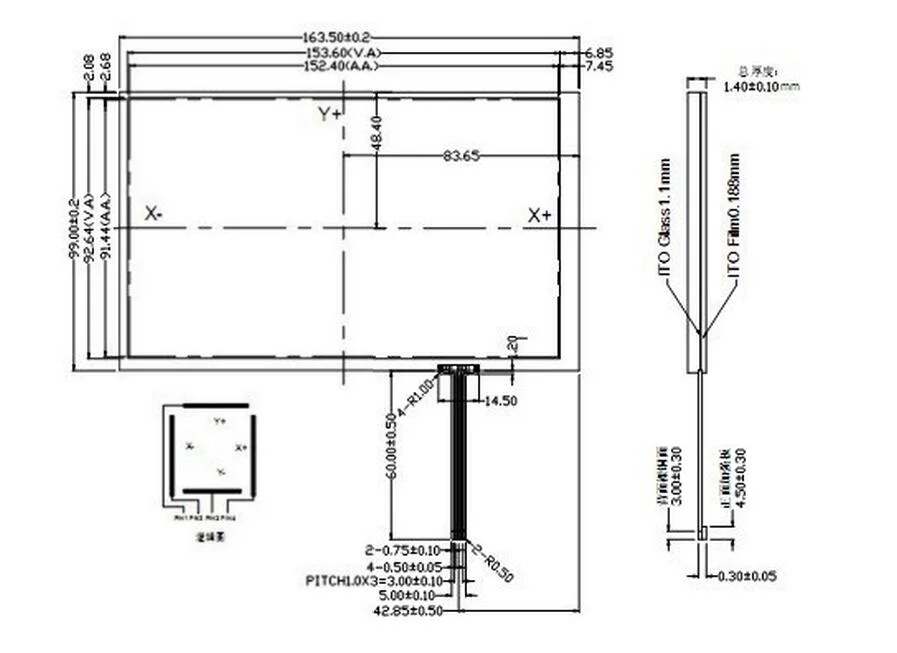

Product Drawing:
