Rg057jqt-01 5.7 Inch 640X480 TFT LCD Display Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG057JQT-01
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
640X480
Luminance
700 CD/M2
Contrast Ratio
250:1
Back Lights
3X7LED
Outline Size
127X98.43X7.0t mm
Active Area
115.2X86.4 mm
Operating Temperature
-20~70
Storage Temperature
-30~80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General specification:

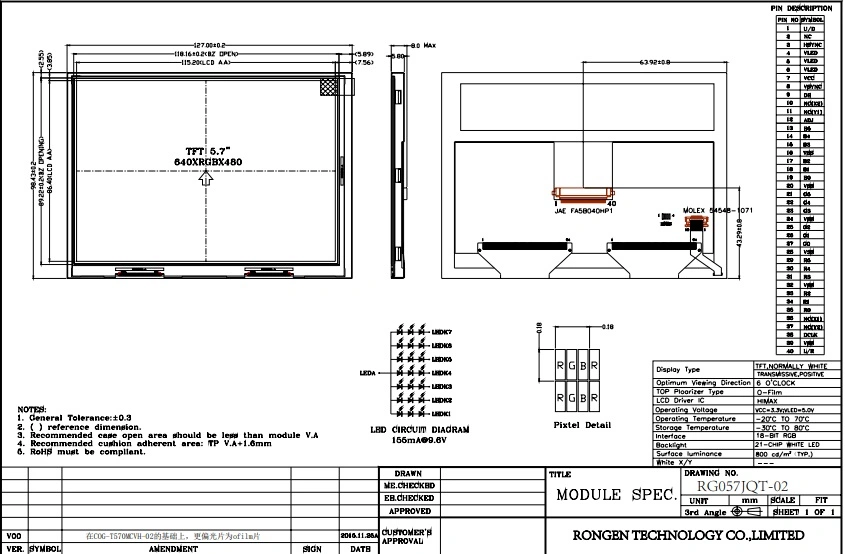

Mechanical Drawing
| Item | Contents |
| LCD Type | TFT Transmissive |
| Technology type | a-Si TFT Active matrix |
| Resolution | 640*(RGB)*480 Dots |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 115.20 *86.40 mm |
| Viewing Direction | 6 O'clock(without image inversion) |
| Driver IC | HX8250A(*2)+HX8678B(*1) |
| Module Size(W*H*T) | 127x98.43x7.0(Max) mm |
| Back Light | White LED |
| Surface treatment | Anti-glare |
| System interface | 18 Bit RGB interface |
Mechanical Drawing
