4.3inch 480*272 TFT LCD Display Touch Fax Printing All-in-One Machine

4.3inch 480*272 TFT LCD Display Touch Fax Printing All-in-One Machine

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG043DTD-07R

Widescreen

Response Time

10ms

Not 3D

Interface Type

RGB888

Pins

40pins

Resolution

480*272

Luminance

400CD/M2

Contrast Ratio

500:1

Operating Temperature

-20~70

Storage Temperature

-30~80

Driver IC

Hx8257A

Backlight

5*2 LEDs White

Active Area

95.04*53.86

Module Size

105.5*67.2*4.05

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

10000PCS/Month

Product Description

Specifications

ITEM	CONTENTS
LCD Type	TFT
Display color	16.7M
Viewing Direction	6 O'Clock
Gray scale inversion direction	12 O'Clock
Operating temperature	-20~+70 ºC
Storage temperature	-30~+80 ºC
Module size	105.567.204.05
Active Area(W×H)	95.04*53.86 mm
Number of Dots	480*272 dots
Controller	HX8257A
Power Supply Voltage	3.3 V
Backlight	5X2-LEDs (white) pcs
Interface	RGB888

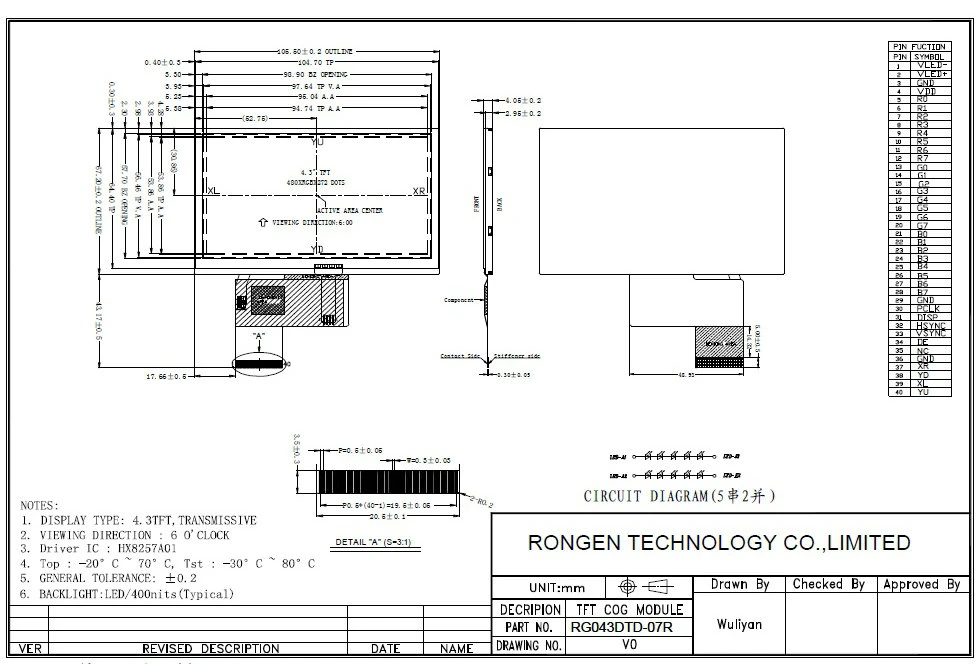

Merchanical Drawing
4.3inch 480*272 TFT LCD Display Touch Fax Printing All-in-One Machine

Ronen have concentrate on designing and manufacturing display products for more than 12 years.We can offer monochrome tn/stn, cstn, tft and oled displays and other display components.Our transflective tft displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable tft displays,our product is your best choice.And our ips and ltps panels are wide viewing angles, they are widely used in automotive electronics applications and medical instruments.
Further more, each unit bears sgs, tuv and rohs marks.The innovative flat panel display and products provided by our elite team can keep pace with such a fast-changing global marketplace.We can also meet your display specifications, and satisfy your individual request.The most competitive and satisfying products have won us high reputation.
Now ronen display co.Ltd is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.

Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display (1.44inch~4.3inch)	mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display (5.0inch~10.0inch)	mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display (10inch and above)	educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED	elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould	industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
