4.3 Inch Color LCD TFT Module 480X272 LCD Screen Display with Capacitive Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG043DTT-02R
Number of Dots
480*(RGB)*272
Brightness
360 CD/M2
Contrast Ratio
500:1
Active Area
53.86 *95.04 mm
Viewing Angle
70/70/70/50
Viewing Direction
6 O′clock
Response Time
50ms
Driver IC
Hx8257A
Operating Temperature
-20~+70
Storage Temperature
-30~+80
Outline Size
105.5X67.2X4.1 mm
Interface
24bits RGB
Controller
St7282t2
Connector
40pin
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
General Specification:

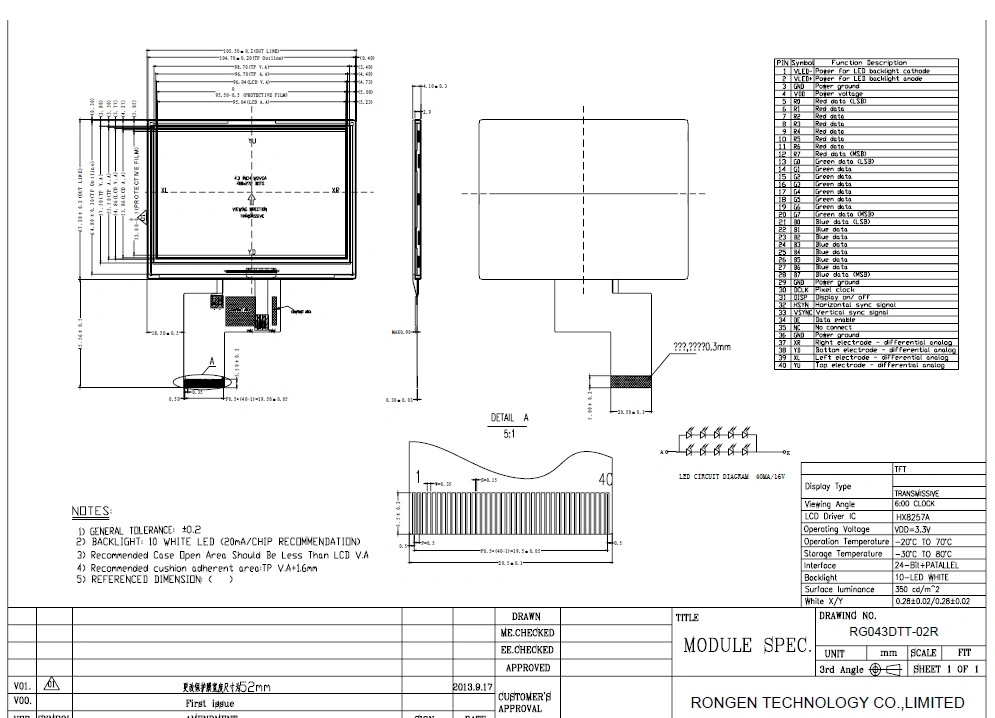

Outline drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Item | Contents |
| LCD Type | TFT |
| Driver Element | a-si TFT Active Matrix |
| Numbers of Dots | 480*(RGB)*272 |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area(W*H*T) | 53.86*95.04 |
| View Direction | 12'Clock |
| Driver IC | HX8257A |
| Module Size(W*H*T) | 67.2*105.5*4.1 |
| Approx.Weight | TBD |
| Backlight | White LED |
| Interface | 24 Bits RGB and ITU-R BT656 |
| Brightness | 350cd/m2 |
Outline drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
