4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
  • 4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
  • 4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
  • 4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
  • 4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
  • 4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)
4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)

4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG043DTT-02
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Brand
Rongen
Product Name
Rg043dtt-02
Size
4.3inch
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month

Product Description

Product Description

LCD TYPE  TFT/TRANSMISSIVE
MODULE SIZE (W*H*T)  67.20*105.50*2.90 MM
ACTIVE SIZE (W*H)  53.86*95.04 MM
PIXEL PITCH (W*H)  0.198*0.198 MM
NUMBER OF DOTS  480*272
DIVER IC  ST7282T2
INTERFACE TYPE  24-BIT RGB
TOP POLARIZER TYPE ANTI-GLARE
RECOMMEND VIEWING DIRECTION  6 O'CLOCK
GRAY SCALE INVERSION DIRECTION  12 O'CLOCK
COLORS  16.7M
BACKLIGHT TYPE  10- LED WHITE
TOUCH PANEL TYPE  WITHOUT

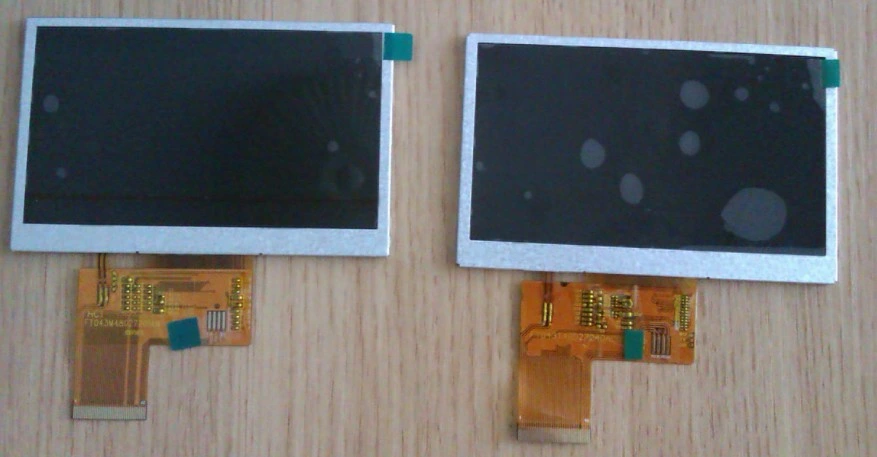

Product Pictures

4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)

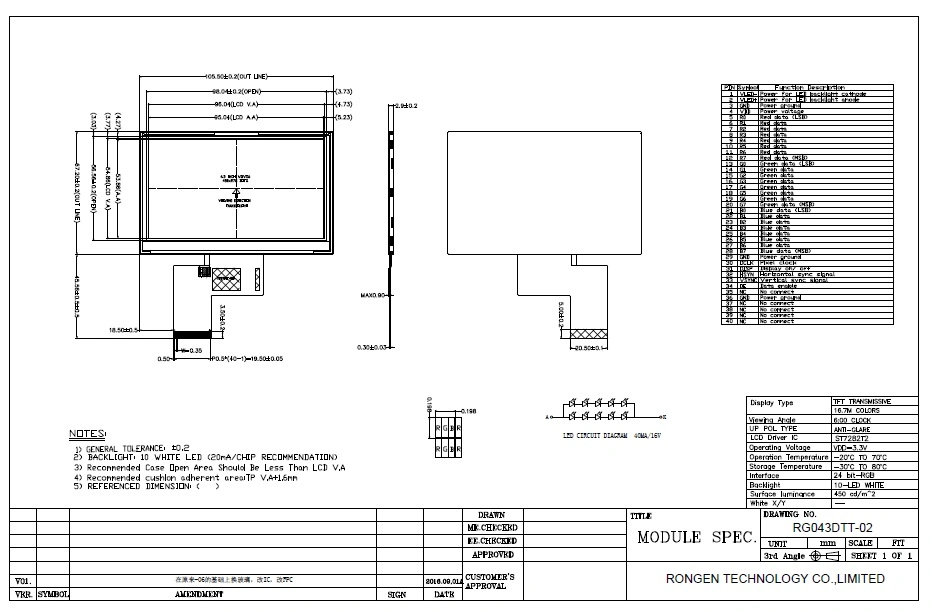

Merchanical Drawing

4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)4.3 Inch TFT Type with RGB Interface LCD Module/LCD Display/LCD Monitor/LCD Screen/TFT LCD for Vehicle-Mounted (105.5*67.2*2.9)



Product Application



Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.



Product

 high luminance 4.3 inch tft lcd module 4.3 tft lcd screen 4.3 wvga tft lcd

Small-size TFT LCD display

mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.

Mid-size TFT LCD display

mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.

Big-size TFT LCD display

educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.

TN/STN//FSTN/OLED

elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.

Plastic mould

industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
