Ronen Rg043dqd-11 40pin 4.3inch 480*272 LCD Screen with 450 Brightness

Ronen Rg043dqd-11 40pin 4.3inch 480*272 LCD Screen with 450 Brightness

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG043DQD-11

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Resolution

480*272

Backlight

9-LEDs (White)

Brightness

450CD/M2

Contrast Ratio

500:1

Interface

RGB 24bit

Controller

Ili6480b

Active Area(W×h)

95.04X53.86

Module Size

Refer to Outline Drawing

Operating Temperature

-20~+70

Storage Temperature

-30~+80

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

Specification:

Item	Contents
TFT	LCD Type
Display color	16.7M
Viewing Direction	12 O'Clock
Gray scale inversion direction	6 O'Clock
Operating temperature	-20~+70 ºC
Storage temperature	-30~+80 ºC
Module size	Refer to outline drawing
Active Area(W×H)	95.04X53.86mm
Number of Dots	480×272dots
Controller	ILI6480B
Power Supply Voltage	3.3V
Outline Dimensions	Refer to outline drawing
Backlight	9-LEDs (white) pcs
Interface	RGB 24bit

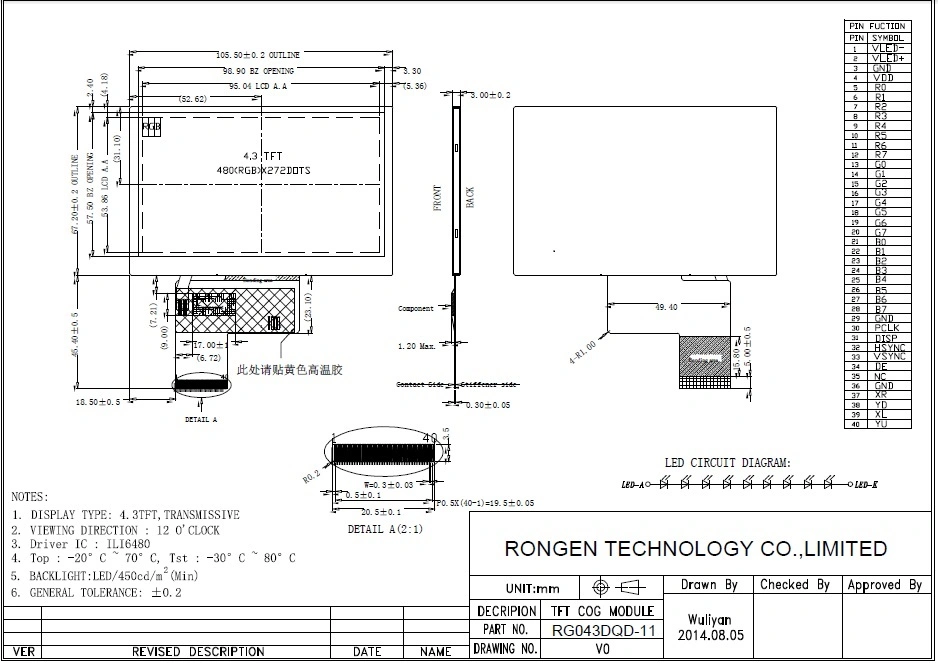

Outline drawing:

Why Choose Rongen Display?

FOG automatical device can ensure the capacity of 1000,000 per month.
Reliability test and full examination to ensure the high quality of the display.
Strictly ISO quality management system.
Mature and Professional after service.
Various cooperation experience with big brands.
