FSTN 192*64 Resolution 4.3inch LCD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG19264-4312
Display Technology
FSTN
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Number of Dots
192*64
View Angle Direction
6’clock
Active Area
90.2*33.24mm
Outline Dimension
127.35*61.65*9.7mm Max
Operating Temperature
-20+70
Storage Temperature
-30~+80
Backlight
LED
Controller IC
St7565*2
Viewing Size
95.0*38.0mm
Driver Mode
1/64 Duty 1/9bias
Transport Package
Standard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
Specification
Outline drawing
| Type | FSTN |
| Display color | Black |
| Background color | Grey |
| View angle direction | 6'clock |
| Driver mode | 1/64 DUTY 1/9BIAS |
| Backlight | LED |
| Controller IC | ST7565*2 |
| Number of Dots | 192 x 64 |
| Dot size | 0.43*0.48mm |
| Dot pitch | 0.47 x 0.52mm |
| Viewing size | 95.0*38.0mm |
| Active area | 90.2*33.24mm |
| Outline dimension | 127.35*61.65*9.7mm MAX |

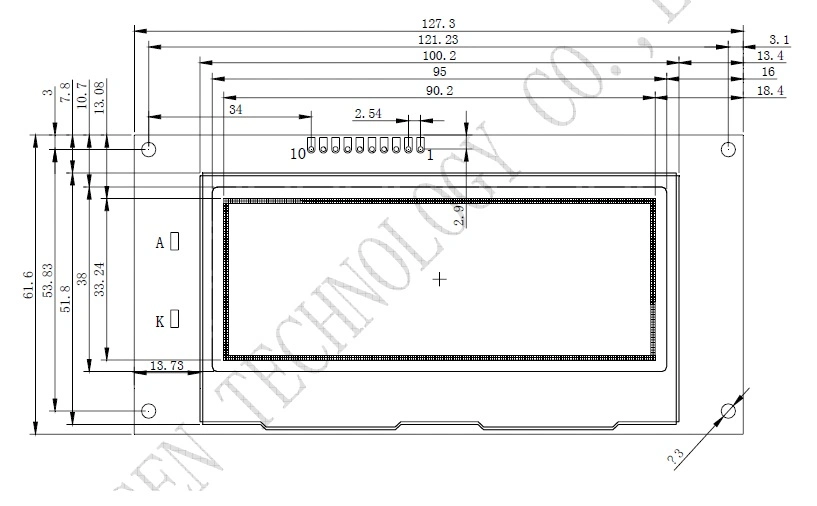

Outline drawing
