LCD Screen 4 Inch 480X800 TFT Display Home Security Plate Control
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T397TVI-05
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
480X800
Luminance
300CD/M2
Contrast Ration
800:1
Active Area
51.84X86.4 mm
Outline Size
57.14X96.85X3.2 mm
Back Lights
2X4LED
Interface
Spi+18bitsrgb
Controller
Ili9806e
Connector
39pin
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Item | Contents |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 57.14*96.85*3.2 MM |
| ACTIVE SIZE (W*H) | 51.84*86.40 MM |
| PIXEL PITCH (W*H) | 0.108*0.108 MM |
| NUMBER OF DOTS | 480*800 |
| DIVER IC | ILI9806E |
| INTERFACE TYPE | 18 BIT-RGB+SPI |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | ALL O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | - O'CLOCK |
| COLORS | 262K |
| BACKLIGHT TYPE | 8-LED WHITE |
| TOUCH PANEL TYPE | - |

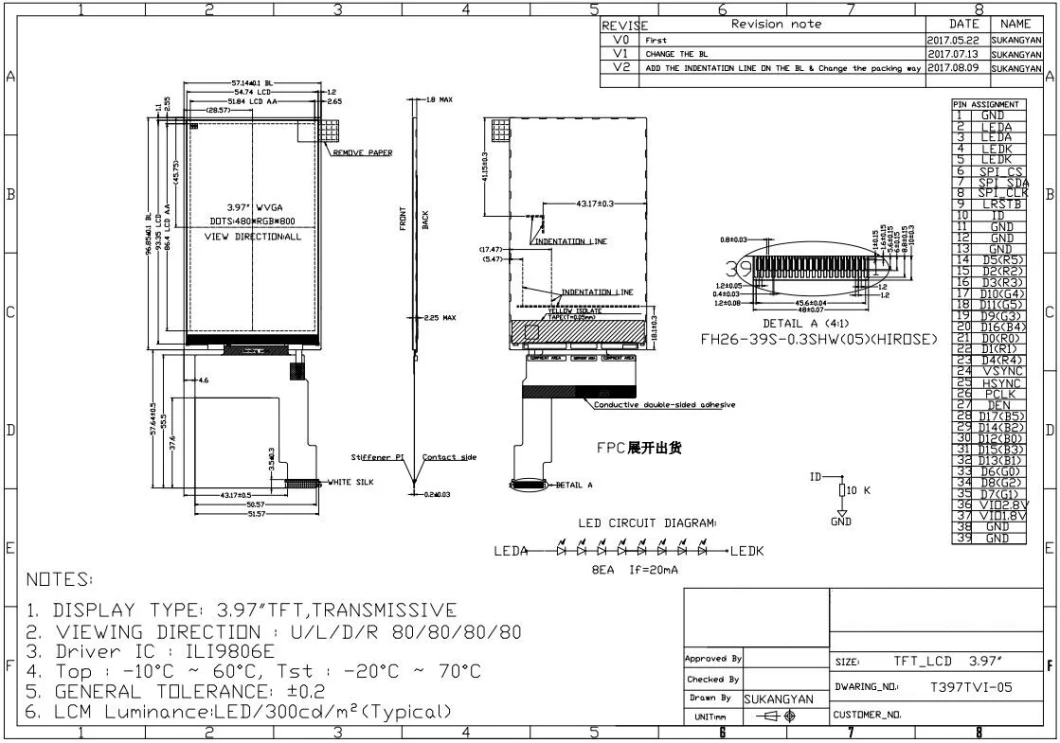

Mechanical Drawing
