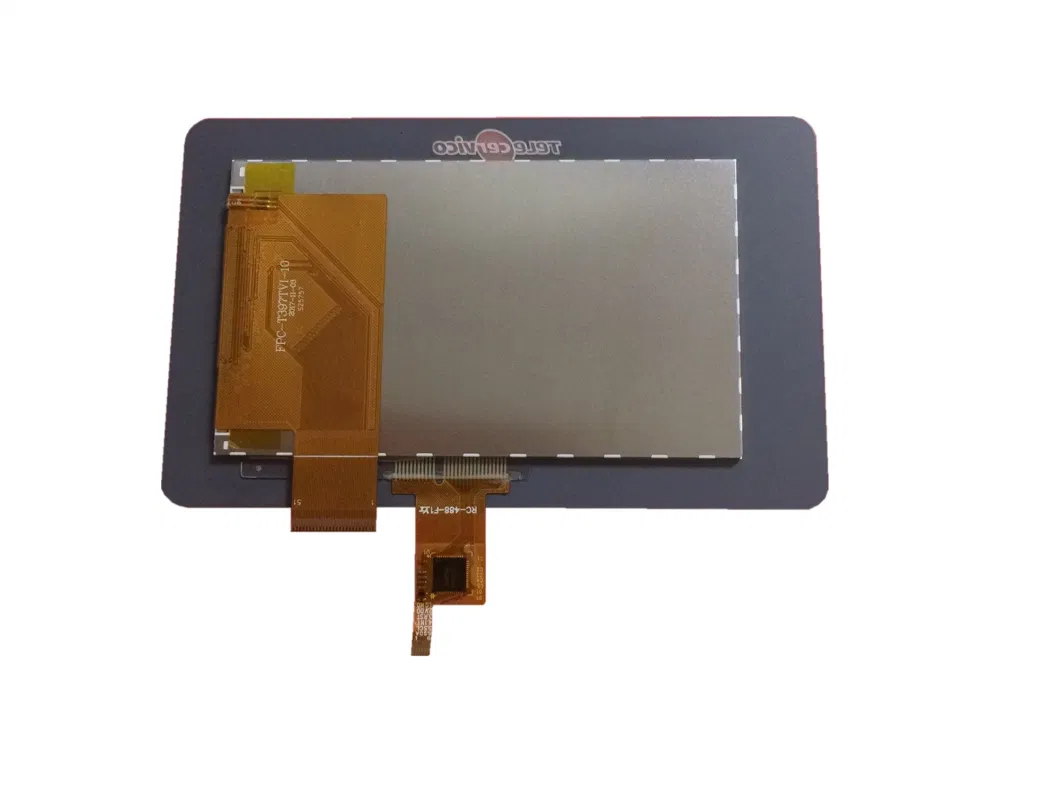

IPS 3.97-Inch LCM TFT LCD Module with 480 (RGB) X800p Resolution and Wide Viewing Angle for Capacitive Touch
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T397TV1-03CP
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
480X800
Luminance
600CD/M2
Contrast Ration
800:1
Active Area
51.84X86.4 mm
Outline Size
61.72X106.87X3 mm
Back Lights
2X4LED
Interface
2 Lane Mipi
Controller
Ili9806e
Connector
33pin
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Feature | Specification | Unit | |
| Display Spec | Size | 3.97 | inch |
| Resolution | 480*800 | dots | |
| Pixel pitch | 0.108 (H) *0.108(V) | mm | |
| Display Mode | IPS/NB | - | |
| Viewing Direction | All | o'clock | |
| Gray Scale Inversion Direction | All | o'clock | |
| Luminance | 600 | cd/m2 | |
| Mechanical | LCM (W * H * D) | 61.72*106.87*3.00 | mm |
| Characteristics | Active Area (W * H ) | 51.84*86.40 | mm |
| With /Without TP | With CTP | - | |
| LED Numbers | 8-LED | pcs | |
| Operation temperature | -20~+70 | ºC | |
| Storage temperature | -30~+80 | ºC | |
| Electrical | Interface | 2LANE MIPI/33PIN | - |
| Characteristics | LCM Power Supply | 2.8 | V |
| LED Power Supply | 24 | V | |
| Color Depth | 262K | - | |
| LCM Driver IC | ILI9806E | - | |
| CTP Dricer IC | - | - | |

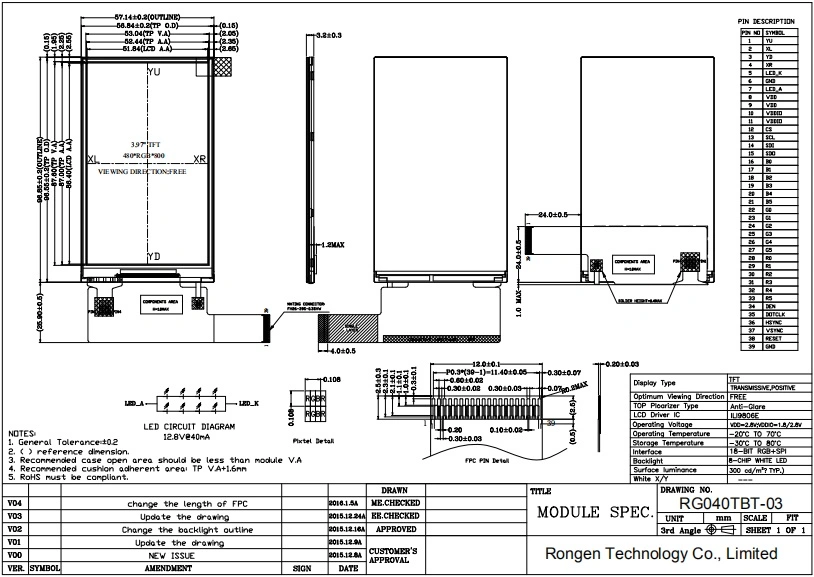

Mechanical Drawing
1.We are a professional designer manufacturer of LCD module and capacitive touch module.
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose
us.
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose
us.
