3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application
  • 3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application
  • 3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application
3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application
3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application

3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG-T035GQITR-01
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Number of Dots
320*480
Luminance
300CD/M2
Contrast Ratio
500:1
Active Size (W*H)
48.96*73.44
Module Size (W*H*T)
65.61*97.41*3.75
Pixel Pitch (W*H)
0.153*0.153
Diver IC
Ili9488
Interface Type
RGB/MCU/Spi
Backlight Type
6-Chip White LED
Colors
16.7m
Transport Package
Standard
Specification
CE. RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month

Product Description

General Specification:

Feature Specification Unit
Display Spec Size 3.5  inch
  Resolution 240*320 dots
  Pixel pitch 0.2235(H)* 0.2235(V) mm
  Display Mode TN/NW -
  Viewing Direction 6 o'clock
  Gray Scale Inversion Direction 12 o'clock
  Luminance 100.0  cd/m2
Mechanical LCM (W * H * D) 64.00*85.00*2.93 mm
Characteristics Active Area (W * H ) 53.64*71.52 mm
  With /Without TP Without TP -
  LED Numbers 6S-LED pcs
  Operation temperature -20~+70 ºC
  Storage temperature -30~+80 ºC
Electrical Interface 18BIT RGB/SPI -
Characteristics LCM Power Supply 2.8  V
  LED  Power Supply 18.0  V
  Color Depth 262K -
  LCM Driver IC ILI9341V -
  CTP Dricer IC - -

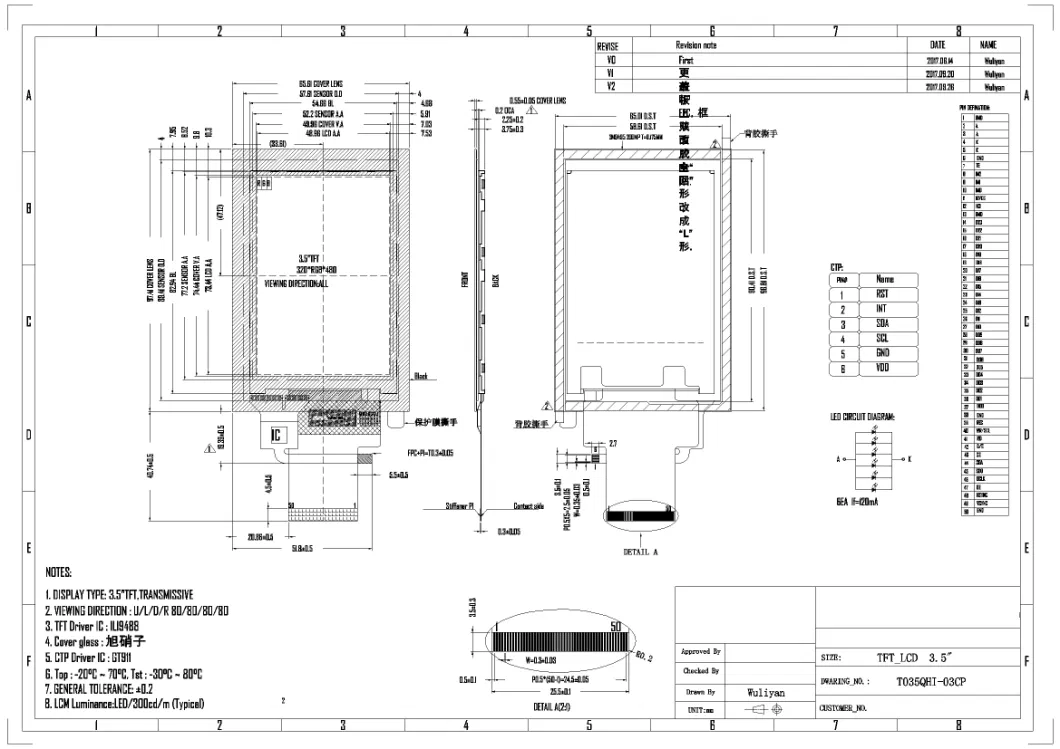

Mechanical Drawing:



3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application
3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application3.5inch Transflective 240 (RGB) *320 TFT LCD Module Sunlight Readable for High-Class Application






Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Product Application
Small-size TFT LCD display  (1.44inch~4.3inch) mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display  (5.0inch~10.0inch) mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display  (10inch and above) educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED  elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
