Ronen 21.5 Inch 1920X1080 TFT LCD Display Multi-Media Display

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG215XXS-01

Widescreen

Response Time

25ms

Not 3D

Interface Type

Edp V1.2

Resolotion

1920X1080

Luminance

200 CD/M2

Contrast Ratio

3000:1

Active Area

479.8X271.3 mm

Outline Size

495.6X292.2X10.6 mm

Viewingangle

80/80/80/70

Operation Temperature

0 ~ 50

Input Terminals

30 Pins

Colors

16.7m

View Angle

88/88/88/88

Back Lights

4X16LED

Interface

2CH Lvds

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

10, 000/Month

Product Description

RG215XXS-01 21.5 Inch 1920x1080 TFT LCD Display Multi-Media Display

General specifications

Parameter	Specification
Display size	21.5 (Diagonal) inch
Active area	479.8(H)x271.3(V) mm
Pixel Format	1366(H) × 768(V)
	(1pixel = R + G + B dot)
Pixel pitch	0.24825 (H) x 0.24825 (V) mm
Pixel configuration	R, G, B vertical stripe
Display mode	Normally black
Driving scheme	FFS
Power Consumption	5W
Surface treatment of front polarizer	Anti-glarecoating: (3H)
Outline dimensions
Parameter	Unit outline dimensions
TYP.	495.6(H) X 292.2 (V) X 10.62
Optimum viewing direction	+80/-80(H),+80/-70(V) Typ.(CR≥10)
Electrical Interface	2-ch LVDS 30pin

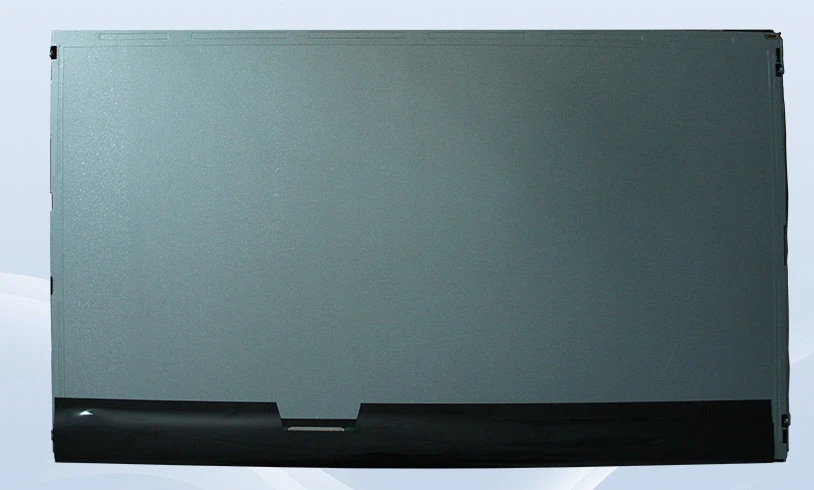

Sample picture:

Ronen 21.5 Inch 1920X1080 TFT LCD Display Multi-Media Display

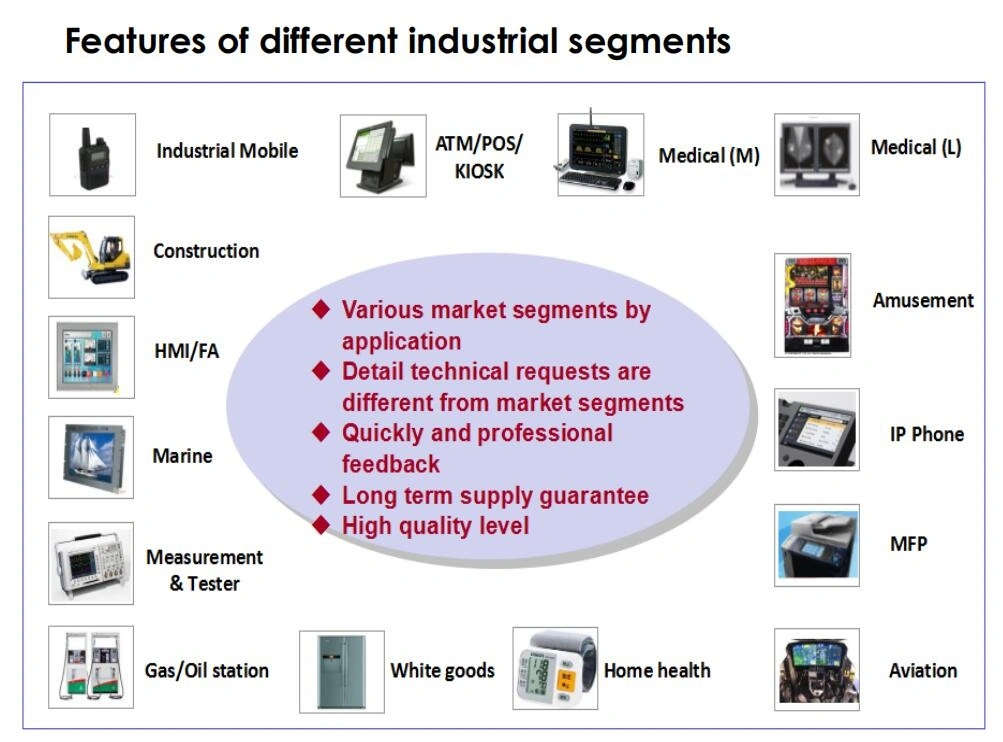

Our LCD module size are from 1.77 inch to 21.5 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
