Ronen 2.8 Inch 240*320 TFT LCD Display Resistive Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG028GTT-08R
Resolution
240*320
Luminance
160 CD/M2
Contrast Ration
500:1
Response Time
30 Ms
Diver IC
Ili9341V
Active Area
43.20*57.60 mm
Outline Size
50.00*69.20*3.65 mm
Backlight Type
4-Dies White LED
Interface Type
16bits MCU
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Item | Contents Unit |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 50.00*69.20*3.65 MM |
| ACTIVE SIZE (W*H) | 43.20*57.60 MM |
| PIXEL PITCH (W*H) | 0.180*0.180 MM |
| NUMBER OF DOTS | 240*320 |
| DIVER IC | ILI9341V |
| INTERFACE TYPE | 16BITS MCU |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | 6 O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 12 O'CLOCK |
| COLORS | 65K |
| BACKLIGHT TYPE | 4-DIES WHITE LED |
| TOUCH PANEL TYPE | RESISTIVE |

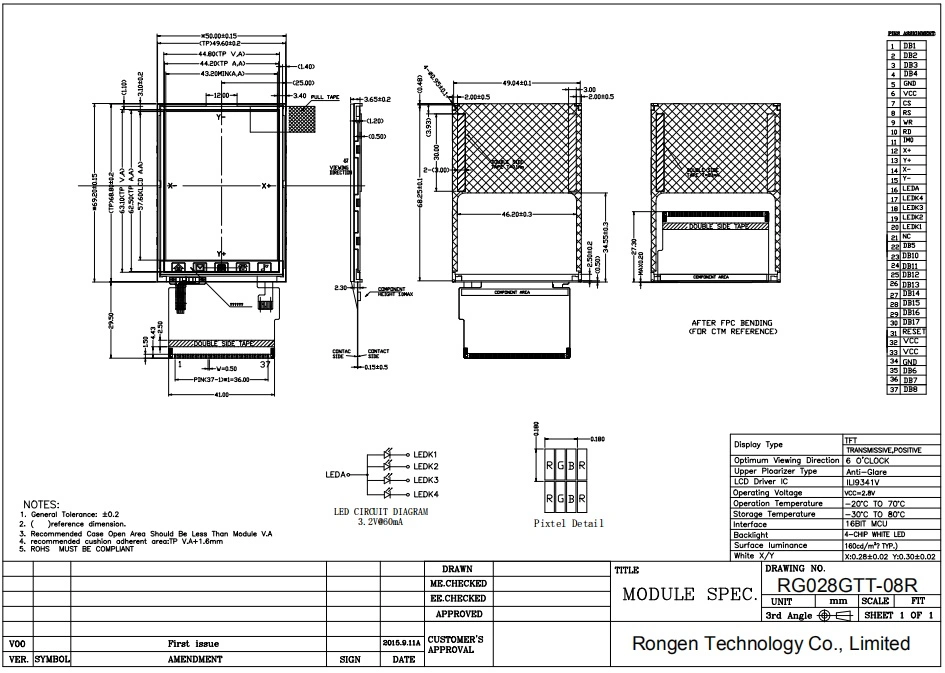

Mechanical Drawing
